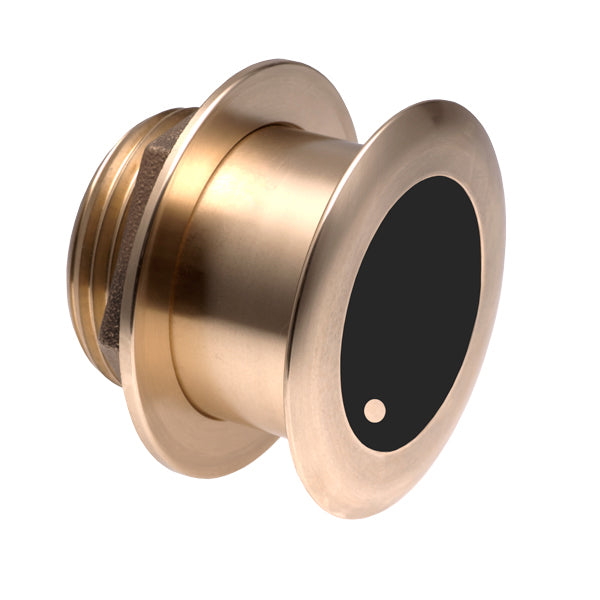

Airmar B175C- 12d - Tilt With No Connector MM Cables.

Airmar B175 CHIRP Medium Frequency 12° & Wide-Beam 12° Tilted Element Bronze Thru Hull Transducers with Bare Wire Mix-N-Match Cable

The Airmar B175 mid-band and wide-beam 12° tilted bronze thru-hull transducers deliver premium CHIRP sonar performance for boats 8 m (25’) and larger. Engineered for fiberglass or wood hulls with a deadrise from 8° to 15°, their permanently tilted elements guarantee straight-down sonar beams and maximum echo returns, ideal for commercial, tournament, and serious recreational anglers.

Model Numbers

• B175C-12-M-0 – Medium CHIRP, 12° Tilt, 85–135 kHz, 24° to 16° beamwidth

• B175C-12-HW-0 – High Wide-Beam CHIRP, 12° Tilt, 150–250 kHz, 25° constant beamwidth

Key Features

• Depth & fast-response water-temperature sensor

• Medium frequency (85–135 kHz) for balanced coverage and depth; wide and detailed beam for mid-depth fishing

• Wide beam (150–250 kHz, constant 25° width) for maximal under-boat coverage and crisper return images

• CHIRP-enabled for greater detail and target separation; up to 50 kHz or 100 kHz bandwidth, depending on model

• Ceramic element tilt compensates for hull deadrise, eliminating installation complexity

• Flush, low-profile bronze housing for reduced drag

• One transducer covers popular fishing frequencies plus broadband detail

• Patented Xducer ID® technology for plug-and-play setup

• Compatible via bare wire Mix-N-Match cable

• Power rating: 1 kW @ 1% duty cycle

• Deadrise range: 8° to 15°

• Acoustic window: Urethane

Model Comparison Table

What’s in the Box

• Selected B175C-12-M-0 or B175C-12-HW-0 Transducer

• MMC-0 Bare Wire Mix-N-Match Cable
