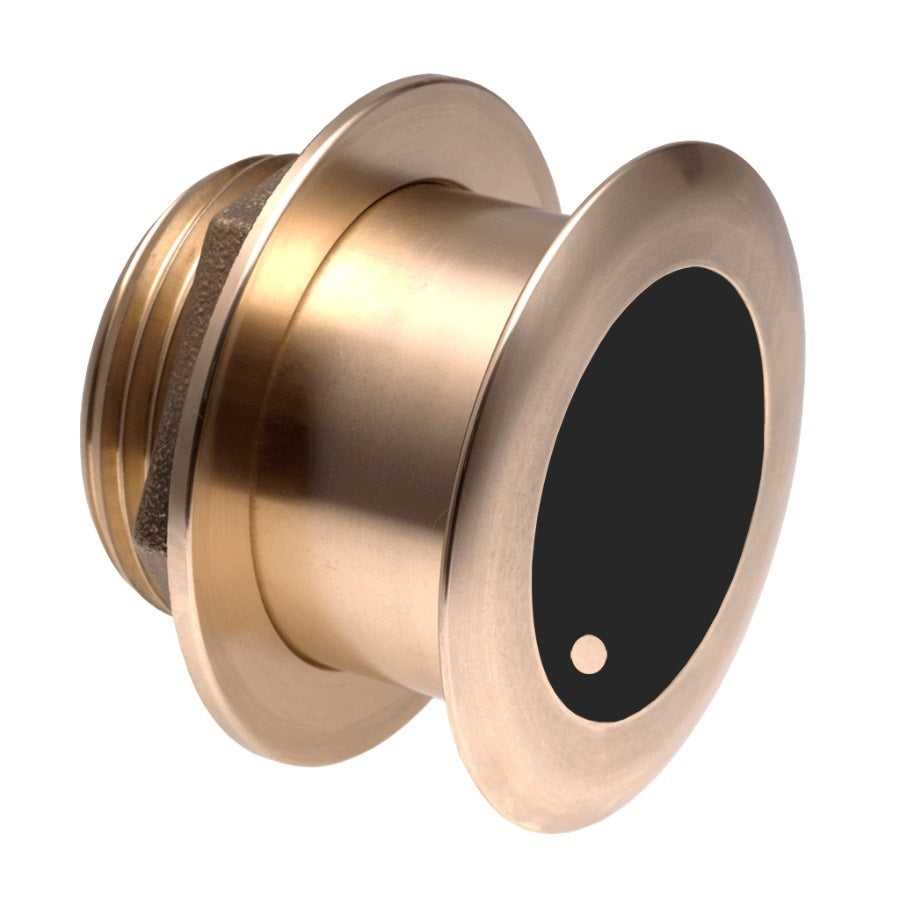

Airmar B175C CHIRP 1kW Medium Ultra-Wide 12° Tilt Thru-Hull Transducer with Garmin Connector.

Airmar B175C CHIRP 1kW Medium Ultra-Wide 12° Tilt Transducer – Garmin 8-Pin or 12-Pin

Product Description:

The Airmar B175C-12-MW delivers powerful mid-depth performance with an ultra-wide beam and Chirp-ready precision. Operating in the medium frequency range (60–100 kHz), it offers a 57°–73° beamwidth port-to-starboard and a 16° average fore-aft—maximizing sonar coverage and target detail.

Designed for thru-hull installations with an 8°–15° hull deadrise, this transducer is ideal for boats up to 36 feet and compatible with Garmin CHIRP systems via 8-pin or 12-pin Mix-n-Match cables. Perfect for tracking pelagic species and mid-water targets with exceptional detail.

Key Features:

• CHIRP Medium Frequency: 60–100 kHz

• Ultra-wide beam: 57°–73° (port/starboard), 16° average (fore/aft)

• 1 kW power rating

• Max depth: 400 m (1,300')

• Bronze, low-profile, thru-hull housing

• Fast-response temperature sensor

• For fiberglass or wood hulls

• Compatible with Garmin CHIRP via 8-pin or 12-pin Mix-n-Match cables

What’s in the Box:

• B175C-12-MW Medium Ultra-Wide Transducer (1kW, 12° Tilt)

• Mix-n-Match Cable – Garmin 8-Pin or 12-Pin (1m)
