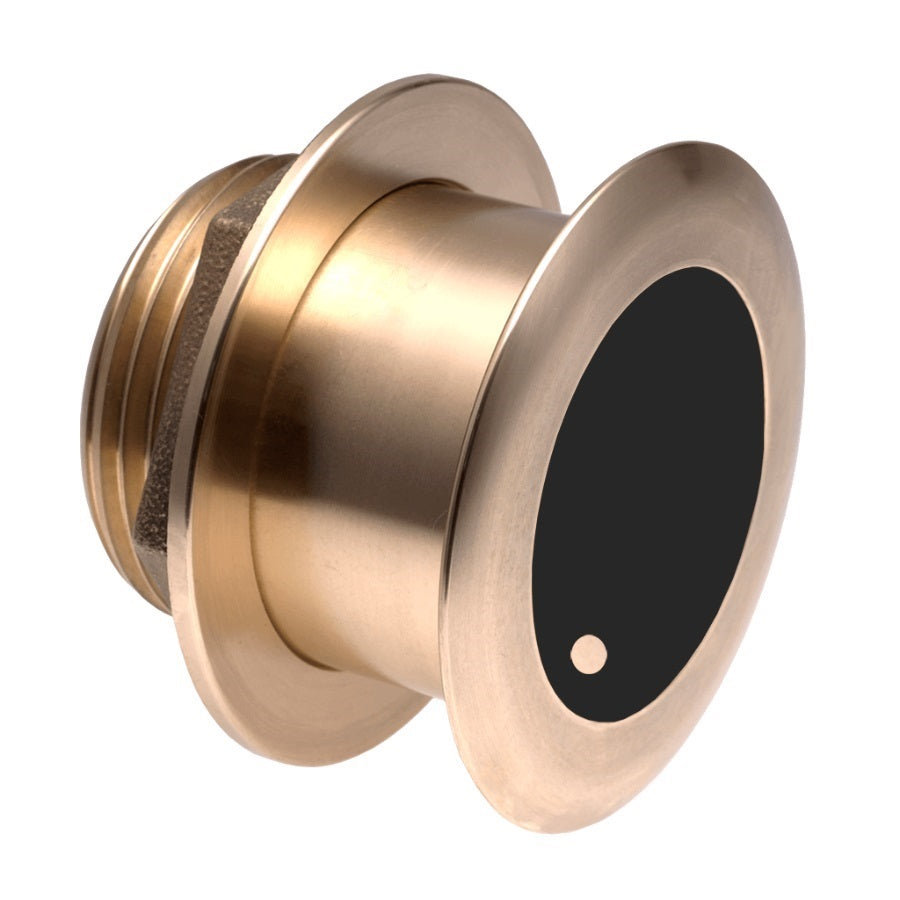

Airmar B175C CHIRP 1kW Medium Ultra-Wide 12° Tilt Thru-Hull Transducer with Humminbird Connector.

Airmar B175C CHIRP 1kW Medium Ultra-Wide 12° Tilt Transducer – Humminbird 9-Pin, 14-Pin, or 21-Pin

Product Description:

The Airmar B175C-12-MW delivers massive sonar coverage with its ultra-wide beam—perfect for mid-depth pelagic species. Operating between 60–100 kHz, it delivers a 57°–73° beamwidth (port/starboard) and a 16° average fore/aft angle, making it ideal for targeting fish in the upper water column with crisp target separation.

Designed for hulls with 8°–15° deadrise and boats up to 36’, this 1kW bronze thru-hull transducer is compatible with Humminbird CHIRP systems via 9-pin, 14-pin, or 21-pin Mix-n-Match connectors. Excellent for both stepped and displacement hulls.

Key Features:

• CHIRP Medium Frequency: 60–100 kHz

• Ultra-Wide Beam: 57°–73° (Port/Starboard), 16° Fore/Aft

• Max Depth: 400 m (1,300')

• Power Rating: 1 kW

• Tilted Element: 12° for 8°–15° hull deadrise

• Bronze thru-hull housing

• Fast-response temperature sensor

• For fiberglass or wood hulls

• Xducer ID® technology for advanced pairing

• Compatible with Humminbird CHIRP systems

What’s in the Box:

• B175C-12-MW Transducer – 1kW, 12° Tilt

• Mix-n-Match Cable – Humminbird 9-Pin, 14-Pin, or 21-Pin
