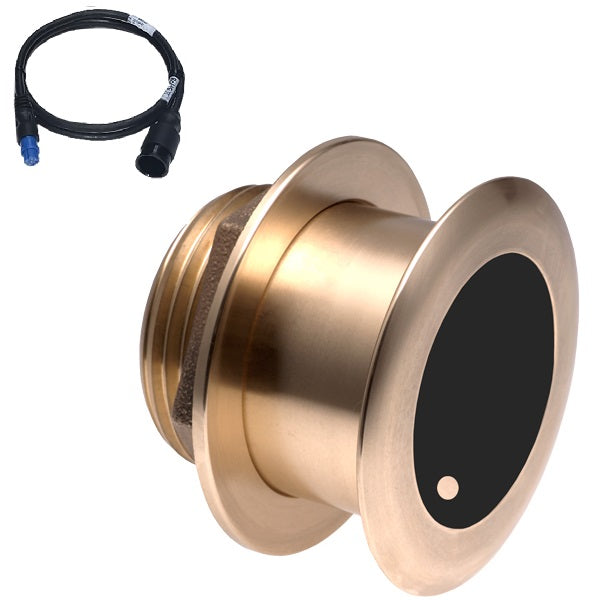

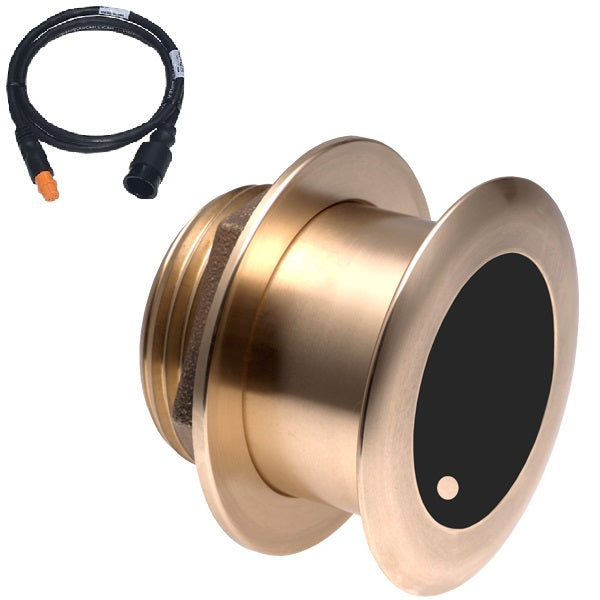

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Thru-Hull Transducer with Garmin Connectors.

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Transducer – Garmin 8-Pin or 12-Pin

Product Description:

The Airmar B175C-20-H transducer delivers crisp, high-resolution sonar images thanks to its high-frequency CHIRP band (130–210 kHz) and 1kW of power. Designed for hulls with a 16°–25° deadrise, the 20° tilt built into the bronze housing ensures the ceramic element is aimed straight down for optimal returns—no fairing block required.

This low-profile, thru-hull transducer is perfect for anglers targeting structure or fish in depths up to 1,000 ft. Its wide 80 kHz CHIRP range covers popular frequencies like 200 kHz, making it ideal for both coastal and inshore fishing. Compatible with Garmin CHIRP sounders via 8-pin or 12-pin Mix-n-Match cables.

Key Features:

• CHIRP High Frequency: 130–210 kHz

• Beamwidth: 10° to 6°

• Power: 1 kW

• Max Depth: 1,000 ft

• Tilted Element: 20° for hulls with 16°–25° deadrise

• Low-profile bronze housing

• Depth and fast-response temperature sensor

• Designed for fiberglass or wood hulls

• Flush-mount design; no fairing needed

What’s in the Box:

• B175C-20-H Transducer – 1kW, 20° Tilt

• Mix-n-Match Cable – Garmin 8-Pin or 12-Pin

Model Numbers:
