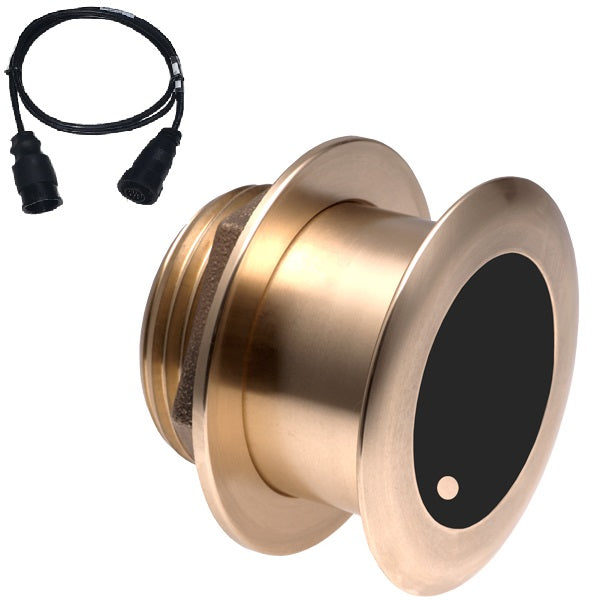

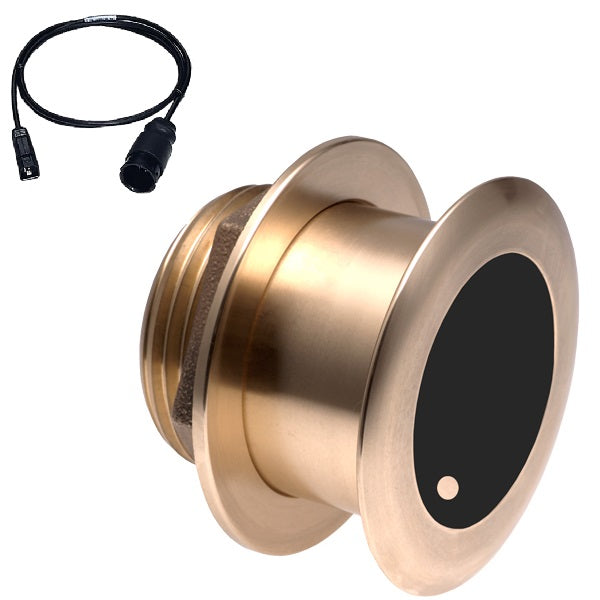

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Thru-Hull Transducer with Humminbird Connectors.

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Transducer – Humminbird 9-Pin or 14-Pin

Product Description:

The Airmar B175C-20-H transducer is engineered for high-performance sonar imaging in deeper waters. Its 20° tilted element is ideal for boats with a hull deadrise between 16° and 25°, enabling the ceramic to aim straight down for optimal returns—no fairing block required.

Operating at a high CHIRP frequency band of 130–210 kHz and a 1kW power rating, this thru-hull transducer delivers exceptional clarity for structure, baitfish, and bottom detail up to 1,000 ft deep. Compatible with Humminbird CHIRP systems via 9-pin or 14-pin Mix-n-Match connectors.

Key Features:

• CHIRP High Frequency: 130–210 kHz

• Beamwidth: 10° to 6°

• Power: 1 kW

• Max Depth: 1,000 ft

• 20° Tilted Element for 16°–25° deadrise hulls

• Low-profile thru-hull installation—no fairing required

• Depth and fast-response temperature sensing

• Compatible with fiberglass or wooden hulls

What’s in the Box:

• B175C-20-H Transducer – 1kW, 20° Tilt

• Mix-n-Match Cable – Humminbird 9-Pin or 14-Pin
