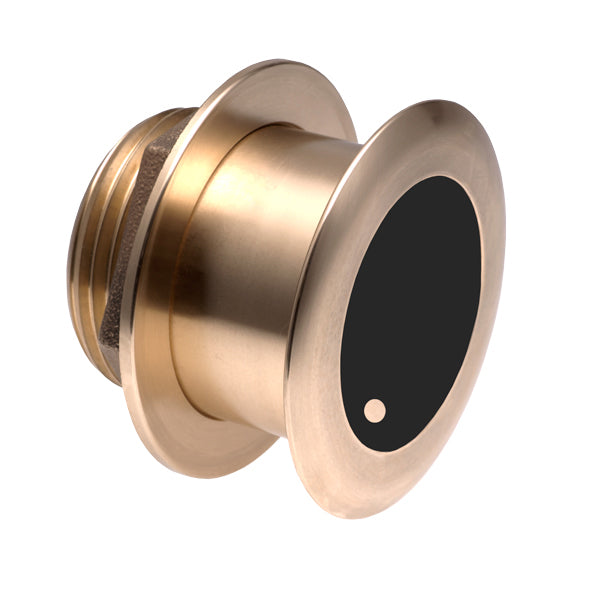

Airmar B175C- 20d - Tilt With No Connector MM Cables.

Airmar B175 CHIRP Bronze Thru Hull 20° Tilted Element Transducers with Bare Wire Mix-N-Match Cable

The Airmar B175 series with a 20° tilted element is designed for boats 8 m (25’) and above, featuring bronze thru-hull construction for fiberglass or wood hulls. The permanently tilted ceramic elements in the housing compensate for hull deadrise angles between 16° and 25°, ensuring the sonar beam points straight down for maximum and accurate echo returns without requiring a fairing.

These flush-mount transducers operate in high-frequency CHIRP bands for detailed fish and bottom imaging, with the wide beam variant providing twice the under-boat coverage for superior fish detection.

Model Numbers

• B175C-20-H-0 – High CHIRP, 150–210 kHz, 10° to 6° beamwidth, 16° to 25° deadrise, max depth 1000 ft

• B175C-20-M-0 – Medium CHIRP, 85–135 kHz, 24° to 16° beamwidth, 16° to 24° deadrise, max depth 1000 ft

• B175C-20-HW-0 – High Wide-Beam CHIRP, 150–250 kHz, constant 25° beamwidth, 16° to 24° deadrise, max depth 500 ft

Key Features

• Depth and fast-response water-temperature sensors

• 1 kW power output at 1% duty cycle

• High and medium frequency CHIRP bands deliver excellent target separation and bottom detail

• Wide beam option provides constant 25° coverage, doubling fish detection area

• Durable bronze housing with urethane acoustic window

• Flush-mounted, no-fairing design for easy installation and low drag

• Accurate beam orientation through 20° ceramic element tilt compensating for hull deadrise

• Compatible with Raymarine systems via bare wire Mix-N-Match cable cables

• Additional cables required: A80328 for single, A102146 for pairs

Model Comparison Table

What’s in the Box

• Selected B175C Transducer (based on model)

• MMC-0 Bare Wire Mix-N-Match Cable
