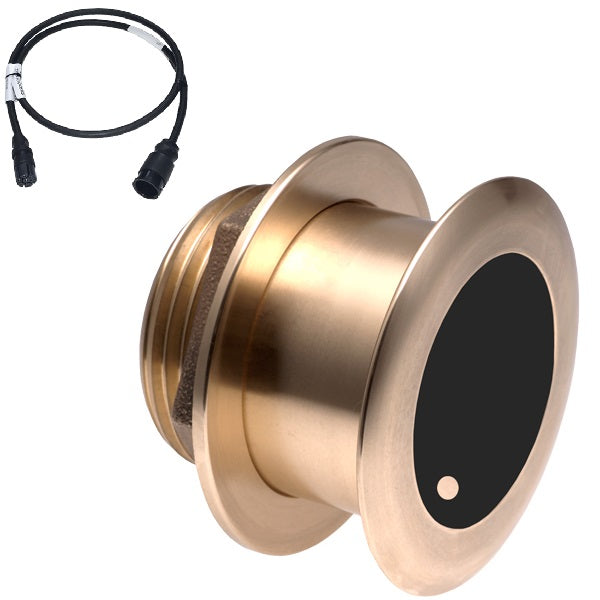

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Thru-Hull Transducer with Raymarine Connector

$1,299.00

~~$1,299.00~~ $1,299.00

Sold out

Shipping calculated at checkout.

Out of stock

Frequency Type: High High High-Wide

Description

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Transducer – Raymarine 11-Pin (Standard or Wide Beam)

Product Description:

The Airmar B175C-20-H series is engineered for high-resolution sonar imaging in challenging marine conditions. With a permanently tilted 20° element for 16°–25° deadrise hulls, these transducers deliver precise downward beam targeting—no fairing block needed.

You can choose between two high-performance options:

Standard High-Frequency (130–210 kHz) for sharper detail and accurate returns from depths up to 1,000 ft.
Wide-Beam High-Frequency (150–250 kHz) offering a 25° constant beamwidth, giving anglers twice the coverage beneath the boat—ideal for spotting targets in the upper water column with exceptional clarity.

Both variants support CHIRP-ready systems and are fully compatible with Raymarine via a Mix-n-Match 11-pin connector. Requires additional cable A80328 (single) or A102146 (pair) when integrating with Raymarine systems.

Key Features:

Feature	Standard High (130–210 kHz)	Wide-Beam High (150–250 kHz)
Beamwidth	10° to 6°	Constant 25°
Max Depth	1,000 ft	~800 ft (typical for wide-beam use)
Bandwidth	80 kHz	100 kHz
Power	1 kW	1 kW
Deadrise	16°–25°	16°–24°
Mount	Low-profile thru-hull, 20° Tilt	Same
Housing Material	Bronze	Bronze
Functions	Depth & temperature	Depth & temperature
Boat Type	Fiberglass or wood, 8m+ boats	Same
