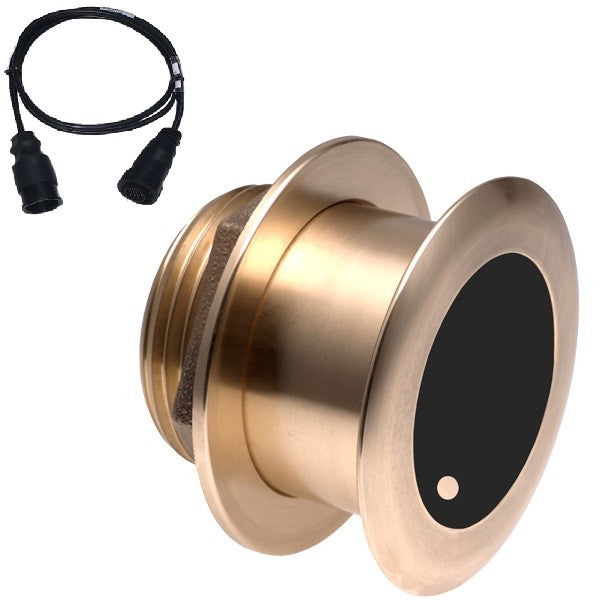

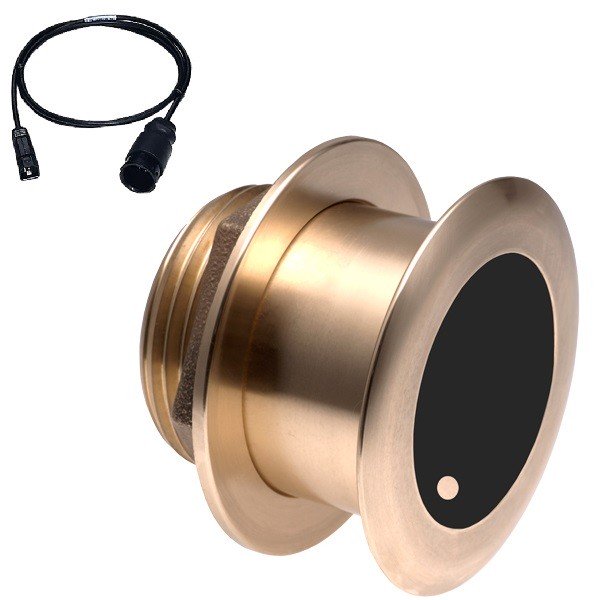

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Wide-Beam Transducer with Humminbird Connectors.
Couldn't load pickup availability
Description
Description
Airmar B175C 20° Tilt Wide-Beam High-Frequency CHIRP Transducer – Humminbird 9-Pin or 14-Pin
Product Description:
For wide-beam clarity and maximum sonar coverage, the Airmar B175C-20-HW delivers unmatched underwater imaging. This 1kW transducer offers a constant 25° beamwidth across the 150–250 kHz frequency band—ideal for anglers seeking exceptional target resolution in shallower to mid-range depths.
With a fixed 20° tilt for boats with a 16°–24° deadrise and bronze thru-hull housing, this transducer is perfect for fiberglass or wood hulls. It’s available with Humminbird Mix-n-Match cables in 9-pin or 14-pin configurations for compatibility with a variety of Humminbird units.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 150–250 kHz (CHIRP) |
| Beamwidth | Constant 25° |
| Max Depth | ~800 ft (system-dependent) |
| Power | 1 kW |
| Mount | Thru-Hull with 20° Tilt |
| Deadrise | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Boat Size | 8 m (25’) and above |
| Functions | Depth, Temperature |
| Connector Options | Humminbird 9-Pin or 14-Pin |
What’s in the Box:
-
B175C-20-HW-MM 1kW CHIRP Transducer
-
MMC-HB (9-Pin) or MMC-14HB (14-Pin) Mix-n-Match Cable
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Humminbird 9-Pin | B175C-20-HW-HB |
| Humminbird 14-Pin | B175C-20-HW-14HB |
