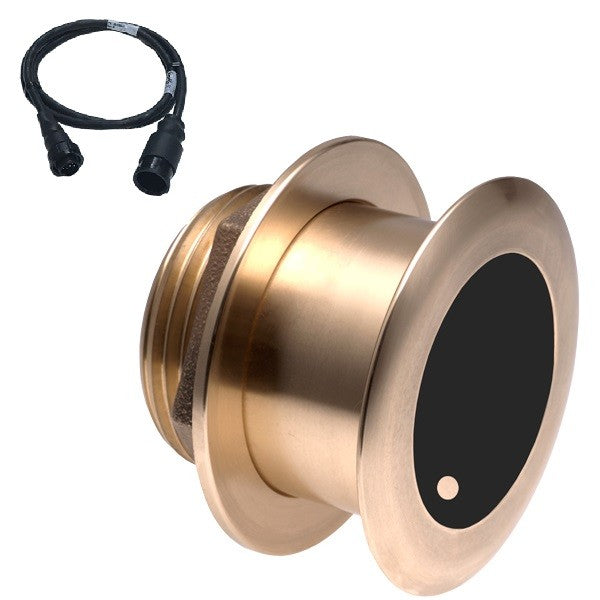

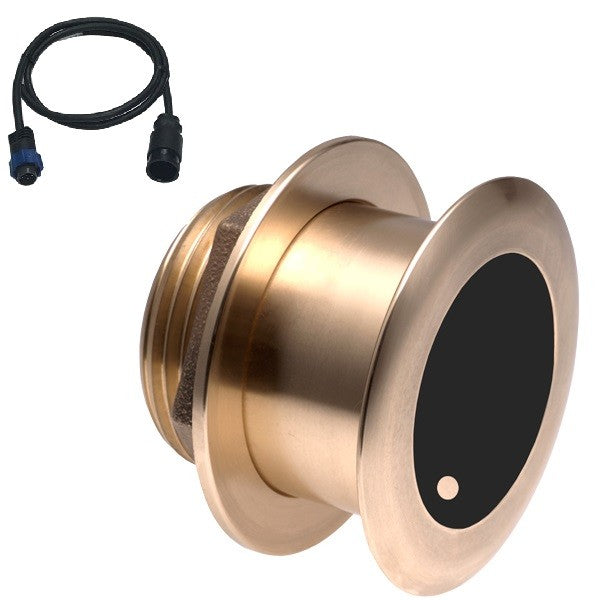

Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Wide-Beam Transducer with Navico Connectors.
Couldn't load pickup availability
Description
Description
Airmar B175C 20° Tilt Wide-Beam High-Frequency CHIRP Transducer – Navico 7-Pin or 9-Pin
Product Description:
The Airmar B175C-20-HW is built for serious anglers who demand ultra-clear imaging and full coverage. With a 25° constant beamwidth and a 150–250 kHz CHIRP frequency band, this thru-hull transducer is optimized for precise, wide-area target detection—ideal for finding fish throughout the upper water column.
Designed with a fixed 20° tilt for hulls with 16°–24° deadrise and a bronze housing for fiberglass or wooden hulls, the B175C-20-HW offers seamless installation and dependable performance, even at speed. Choose between Navico 7-pin or 9-pin Mix-n-Match cables for compatibility with your system.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 150–250 kHz (CHIRP) |
| Beamwidth | Constant 25° |
| Max Depth | ~800 ft (system-dependent) |
| Power | 1 kW |
| Mount | Thru-Hull with 20° Tilt |
| Deadrise | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Boat Size | 8 m (25’) and above |
| Functions | Depth, Temperature |
| Connector Options | Navico 7-Pin or 9-Pin |
What's in the Box:
-
B175C-20-HW-MM Wide-Beam 1kW Transducer
-
MMC-BL (7-Pin) or MMC-9N (9-Pin) Navico Mix-n-Match Cable
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Navico 7-Pin | B175C-20-HW-BL |
| Navico 9-Pin | B175C-20-HW-9N |
