Airmar B175C CHIRP 1kW High-Frequency 20° Tilt Wide-Beam Transducer with Garmin Connectors.
Couldn't load pickup availability
Description
Description
Airmar B175C 20° Tilt High-Frequency Wide-Beam CHIRP Transducer – Garmin 8-Pin or 12-Pin
Product Description:
Unlock more coverage with the Airmar B175C-20-HW, a CHIRP-ready, wide-beam high-frequency transducer built for serious anglers. Designed with a 20° fixed tilt for boats with a 16°–24° hull deadrise, this thru-hull bronze transducer features a constant 25° beamwidth across an expansive 150–250 kHz frequency range.
The result? Twice the bottom coverage compared to standard high-frequency models, exceptional fish detection in the upper water column, and enhanced return images for easier target identification. The B175C-20-HW delivers a crisp, wide-angle sonar experience—ideal for both inshore and offshore fishing.
Compatible with Garmin systems via Mix-n-Match connectors (available in 8-pin or 12-pin versions).
Key Features:
| Feature | B175C-20-HW Specs |
|---|---|
| Frequency Range | 150–250 kHz (CHIRP) |
| Beamwidth | Constant 25° |
| Max Depth | ~800 ft (varies by system & water) |
| Power | 1 kW |
| Mount | 20° Tilted Element Thru-Hull |
| Deadrise | 16°–24° |
| Housing Material | Bronze |
| Functions | Depth, Temperature |
| Hull Type | Fiberglass or Wood |
| Boat Size | 8 m (25’) and above |
| Cable End | Garmin Mix-n-Match (8-pin or 12-pin) |
What’s in the Box:
-
B175C-20-HW-MM 1kW CHIRP Wide-Beam Transducer
-
Garmin Mix-n-Match Cable (8-pin or 12-pin)
Model Numbers:
| Connector Type | Model Number |
|---|---|

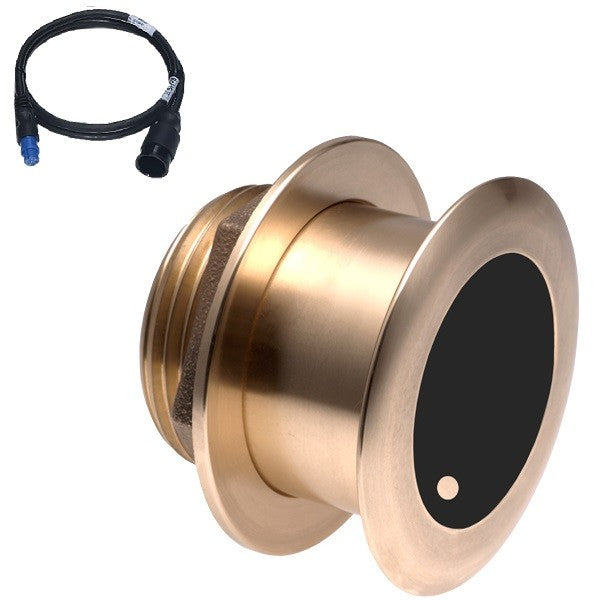

| Garmin 8-Pin | B175C-20-HW-8G |

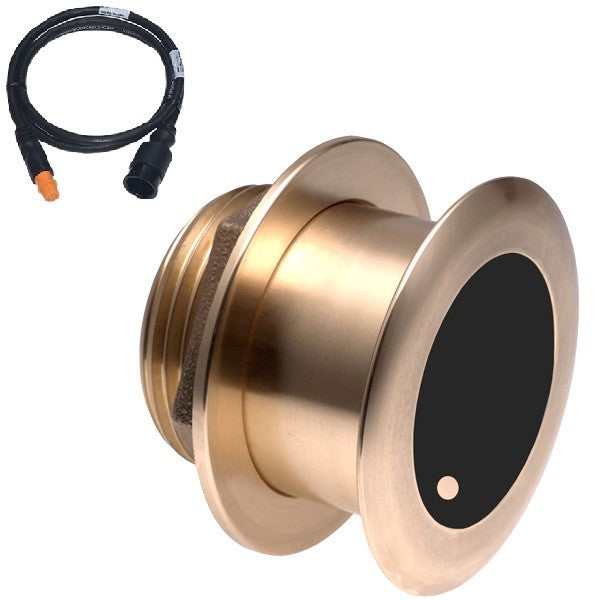

| Garmin 12-Pin | B175C-20-HW-12G |
