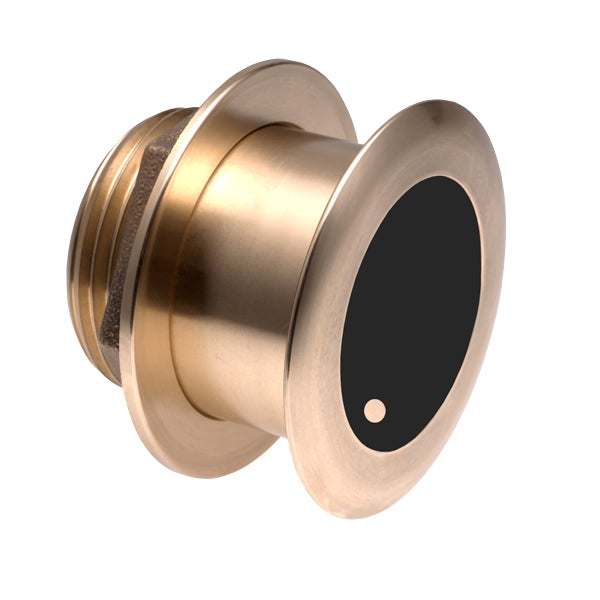

Airmar B175C-20-L Thru Hull 20 Deg Tilt Mix-N-Match

Product Description

The Airmar B175C-20-L is a low-profile, Chirp-ready thru-hull transducer with a 20° tilted element, optimized for deep-water performance and depth/temperature sensing on fiberglass or wood hulls with 16°-24° deadrise.

Product Overview

This low-frequency model transmits across 40-60 kHz for excellent bottom tracking, coverage, and fish detection in deep waters up to 762 m (2500 ft), ideal for planing, stepped, or displacement hulls on boats up to 36 ft.

Key Specifications

• Low CHIRP: 40-60 kHz, 32°-21° beamwidth; 1 kW power

• Bronze housing, urethane window; hole size 95 mm (3-3/4")


What's in the Box

• Airmar B175C-20-L transducer (Mix-N-Match cable required)

• Installation hardware

• User manual
