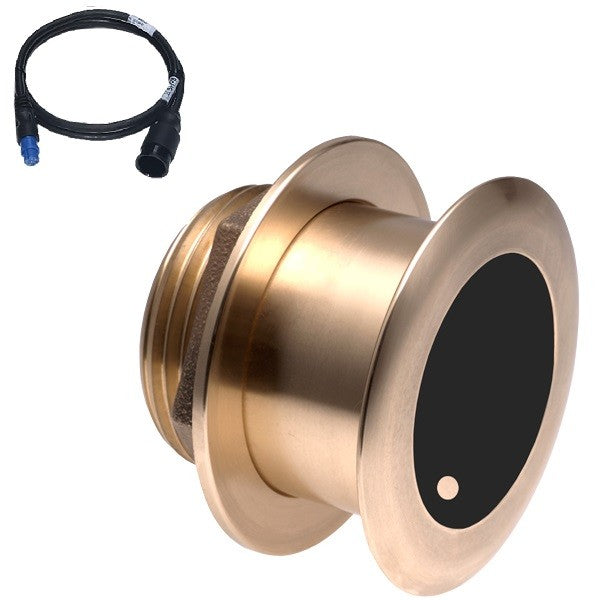

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Transducer with Garmin Connectors.
Regular price
$1,299.00
Regular price
$1,379.00
Sale price
$1,299.00
Unit price
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
Description
Airmar B175C CHIRP Medium-Frequency 20° Tilted Element – Garmin 8-Pin or 12-Pin
Product Description:
The Airmar B175C-20-M transducer is engineered for exceptional target separation and detail at medium depths. Operating in the 85–135 kHz CHIRP frequency band with a 20° fixed tilt, this thru-hull model ensures your sonar beam is properly aligned for hulls with 16° to 24° deadrise.
With a bronze housing and wide beam coverage of 24° to 16°, it’s a powerful solution for anglers fishing deeper than high-frequency transducers allow, while still delivering excellent target resolution. Compatible with Garmin 8-pin or 12-pin devices using Mix-n-Match cabling.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 85–135 kHz (Medium CHIRP) |
| Beamwidth | 24° to 16° |
| Max Depth | Up to 3,000 m (10,000 ft) |
| Power | 1 kW @ 1% duty cycle |
| Mount | Thru-Hull with 20° Tilt |
| Deadrise | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Boat Size | 8 m (25’) and above |
| Functions | Depth, Temperature |
| Connector Options | Garmin 8-Pin or 12-Pin |
What’s in the Box:
-
B175C-20-M-MM Transducer
-
MMC-8G or MMC-12G Garmin Mix-n-Match Cable
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Garmin 8-Pin | B175C-20-M-8G |

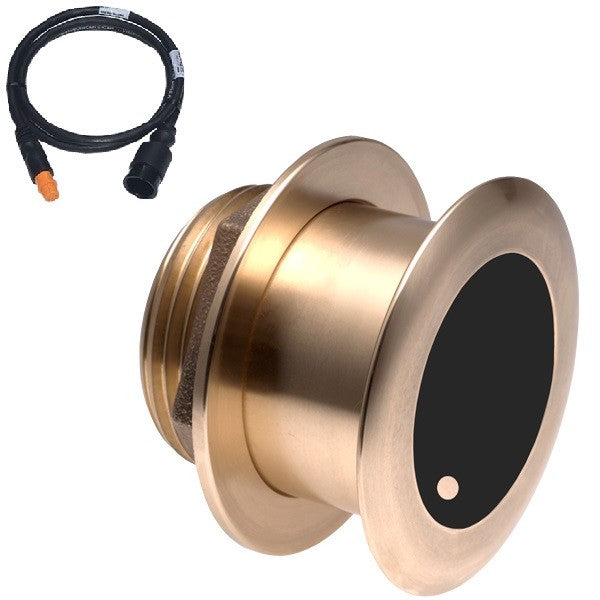

| Garmin 12-Pin | B175C-20-M-12G |
