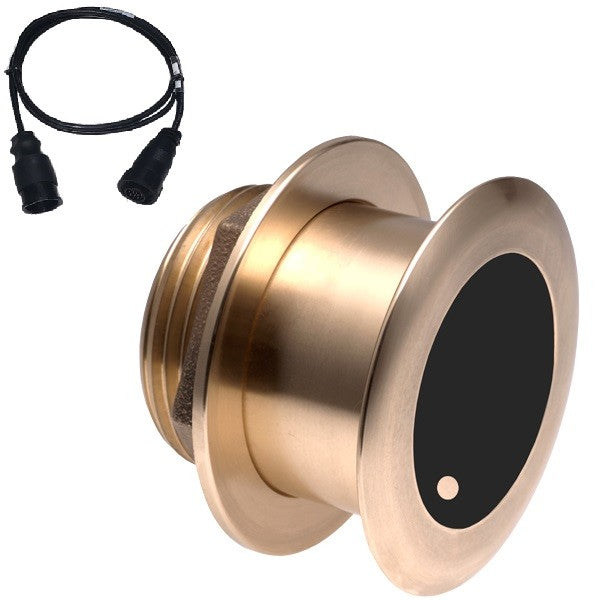

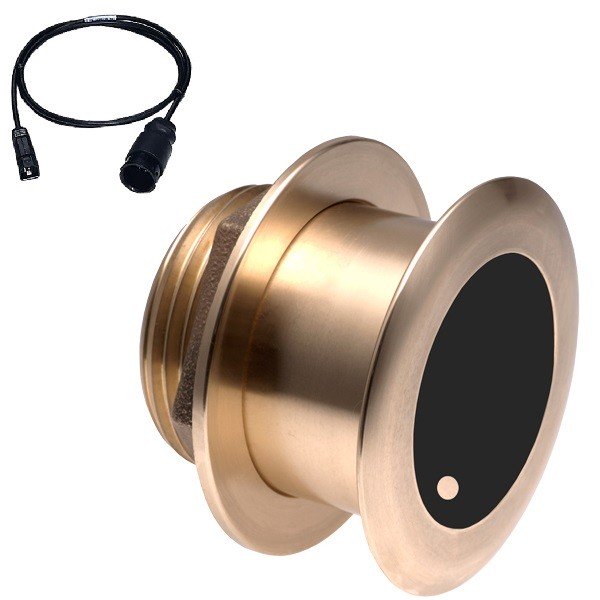

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Transducer with Humminbird Connectors.
Regular price
$1,299.00
Regular price
$1,379.00
Sale price
$1,299.00
Unit price
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
Description
Airmar B175C CHIRP Medium-Frequency 20° Tilted Element – Humminbird 9-Pin or 14-Pin
Product Description:
The Airmar B175C-20-M is a powerful medium-frequency CHIRP transducer, delivering precision target separation and excellent mid-depth fish detection. Its 85–135 kHz frequency range, 24° to 16° beamwidth, and 1kW output provide a reliable solution for boats 25 ft and larger.
With a fixed 20° tilt, it’s ideal for hulls with a 16° to 24° deadrise, ensuring your sonar beam is directed straight down for the clearest returns. The bronze thru-hull housing and Mix-n-Match Humminbird cable support versatile integration with 9-pin or 14-pin systems.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 85–135 kHz (Medium CHIRP) |
| Beamwidth | 24° to 16° |
| Max Depth | Up to 3,000 m (10,000 ft) |
| Power | 1 kW @ 1% duty cycle |
| Mount | Thru-Hull with 20° Tilt |
| Deadrise | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Boat Size | 8 m (25’) and above |
| Functions | Depth, Temperature |
| Connector Options | Humminbird 9-Pin or 14-Pin |
What’s in the Box:
-
B175C-20-M-MM Transducer
-
MMC-HB or MMC-14HB Humminbird Mix-n-Match Cable
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Humminbird 9-Pin | B175C-20-M-HB |
| Humminbird 14-Pin | B175C-20-M-14HB |
