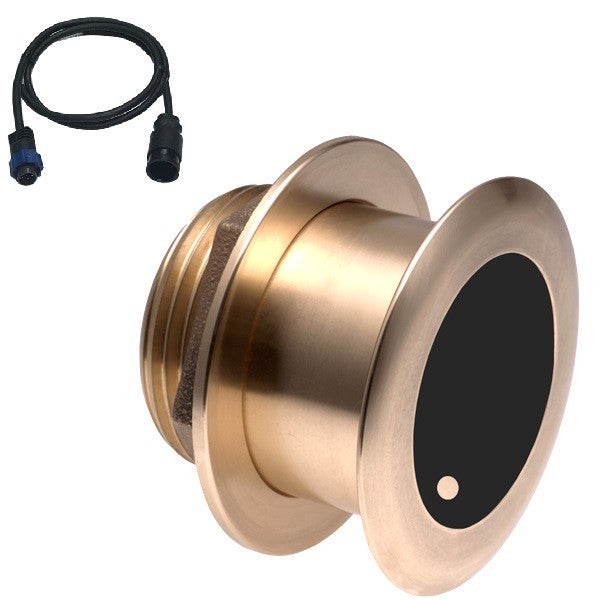

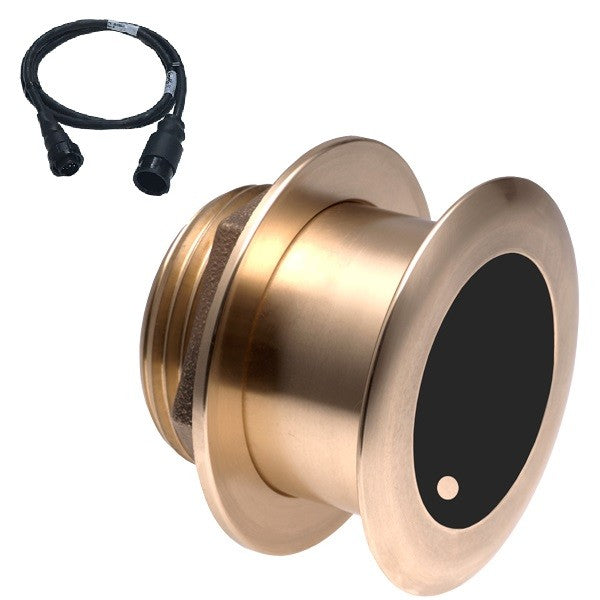

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Transducer with Navico Connectors.
Regular price
$1,299.00
Regular price
$1,379.00
Sale price
$1,299.00
Unit price
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
Description
Airmar B175C CHIRP Medium-Frequency 20° Tilted Element – Navico 7-Pin or 9-Pin
Product Description:
The Airmar B175C-20-M delivers powerful medium-frequency CHIRP sonar performance with broad coverage and refined target resolution. Engineered for boats 25 feet and up, this 1kW transducer features a 20° fixed tilt, ideal for hulls with 16° to 24° deadrise, ensuring optimal sonar alignment and performance.
With a frequency range of 85–135 kHz and 24° to 16° beamwidth, the B175C-20-M excels at mid-depth target detection—perfect for serious anglers and offshore operations. Available with either Navico 7-Pin or 9-Pin Mix-n-Match connectors.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 85–135 kHz (Medium CHIRP) |
| Beamwidth | 24° to 16° |
| Max Depth | Up to 3,000 m (10,000 ft) |
| Power | 1 kW @ 1% duty cycle |
| Mount Style | Thru-Hull, 20° Tilted Element |
| Deadrise Range | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Boat Size | 8 m (25') and above |
| Functions | Depth, Temperature |
| Connector Options | Navico 7-Pin or 9-Pin |
What's in the Box:
-
B175C-20-M-MM Transducer
-
MMC-BL (Navico 7-Pin) or MMC-9N (Navico 9-Pin) Mix-n-Match Cable
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Navico 7-Pin | B175C-20-M-BL |
| Navico 9-Pin | B175C-20-M-9N |
