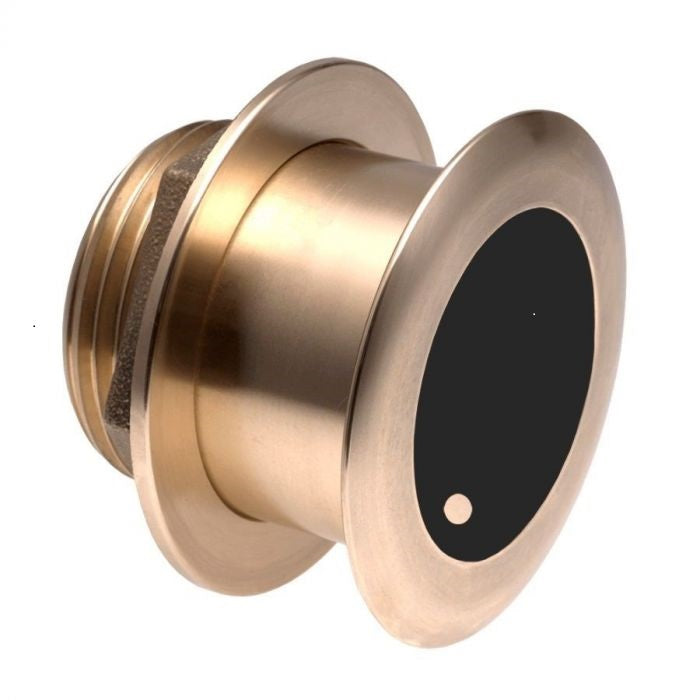

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Ultra-Wide Transducer with Furuno Connector.
Couldn't load pickup availability
Description
Description
Airmar B175C CHIRP Medium-Frequency 20° Tilted Element – Furuno 10-Pin or 12-Pin Ultra-Wide Beam
Product Description:
The Airmar B175C-20-MW brings cutting-edge performance to anglers who demand maximum mid-depth sonar coverage. Designed with a 20° tilted element for hull deadrise angles between 16°–24°, this 1kW medium-frequency CHIRP transducer uses Ultra-Wide beam technology to provide unprecedented bottom and water-column coverage.
With a frequency range of 60–100 kHz and a beamwidth of 57°–73° port/starboard, this transducer delivers enhanced target separation and detail at depths up to 1,300 feet. Ideal for fiberglass or wooden hulls on vessels up to 36 feet, and available with Furuno 10-Pin or 12-Pin Mix-N-Match connectors.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 60–100 kHz (Medium CHIRP Ultra-Wide) |
| Beamwidth (P/S × F/A) | 57°–73° × 16° average |
| Max Depth | 400 m (1,300 ft) |
| Power | 1 kW |
| Mount Style | Thru-Hull, 20° Tilted Element |
| Deadrise Range | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Max Vessel Length | Up to 36 ft (11 m) |
| Functions | Depth, Temperature |
| Cable Type | Mix-N-Match |
| Exclusive Features | Xducer ID® technology, Wide beam for superior coverage |
What’s in the Box:
-
B175C-20-MW-MM Transducer
-
MMC-10F or MMC-12F Furuno Mix-N-Match Cable (based on model)
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Furuno 10-Pin | B175C-20-MW-10F |
| Furuno 12-Pin | B175C-20-MW-12F |
