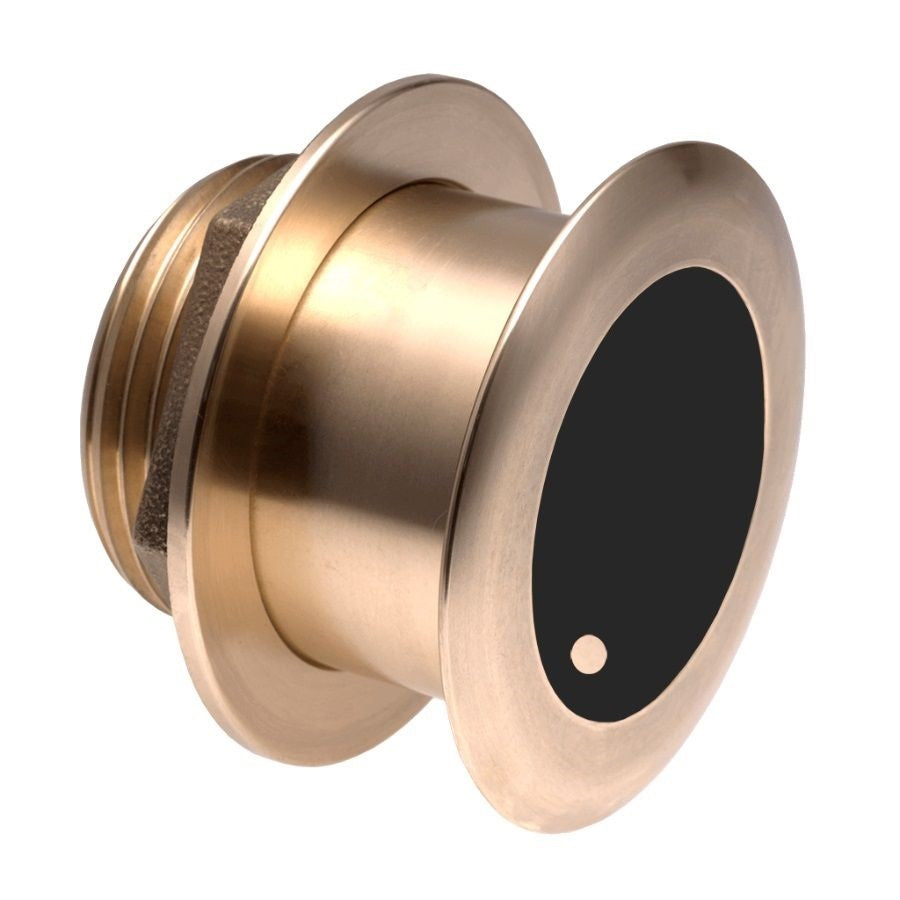

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Ultra-Wide Transducer with Garmin Connector.
Couldn't load pickup availability
Description
Description
Airmar B175C CHIRP Medium-Frequency 20° Tilted Element – Garmin 8-Pin or 12-Pin Ultra-Wide Beam
Product Description:
Take your sonar coverage to the next level with the Airmar B175C-20-MW. Designed for boats with 16°–24° hull deadrise, this CHIRP-ready 1kW transducer delivers Ultra-Wide medium-frequency performance—ideal for mid-depth target separation and wide water-column scanning.
With beamwidths up to 73° port/starboard, it provides unparalleled visibility for locating baitfish and pelagic species. Its low-profile, tilted element thru-hull design ensures optimal performance even at higher speeds, while Xducer ID® technology guarantees full compatibility and optimal tuning with Garmin CHIRP-enabled systems.
Available with Garmin 8-Pin or 12-Pin Mix-N-Match connectors.
Key Features:
| Feature | Specification |
|---|---|
| Frequency Range | 60–100 kHz (Medium CHIRP Ultra-Wide) |
| Beamwidth (P/S × F/A) | 57°–73° × 16° average |
| Max Depth | 400 m (1,300 ft) |
| Power | 1 kW |
| Mount Style | Thru-Hull, 20° Tilted Element |
| Deadrise Range | 16°–24° |
| Housing Material | Bronze |
| Hull Type | Fiberglass or Wood |
| Max Vessel Length | Up to 36 ft (11 m) |
| Functions | Depth, Temperature |
| Exclusive Features | Xducer ID®, Low-profile design |
What’s in the Box:
-
B175C-20-MW-MM Transducer
-
MMC-8G or MMC-12G Garmin Mix-N-Match Cable
Model Numbers:
| Connector Type | Model Number |
|---|---|
| Garmin 8-Pin | B175C-20-MW-8G |
| Garmin 12-Pin | B175C-20-MW-12G |
