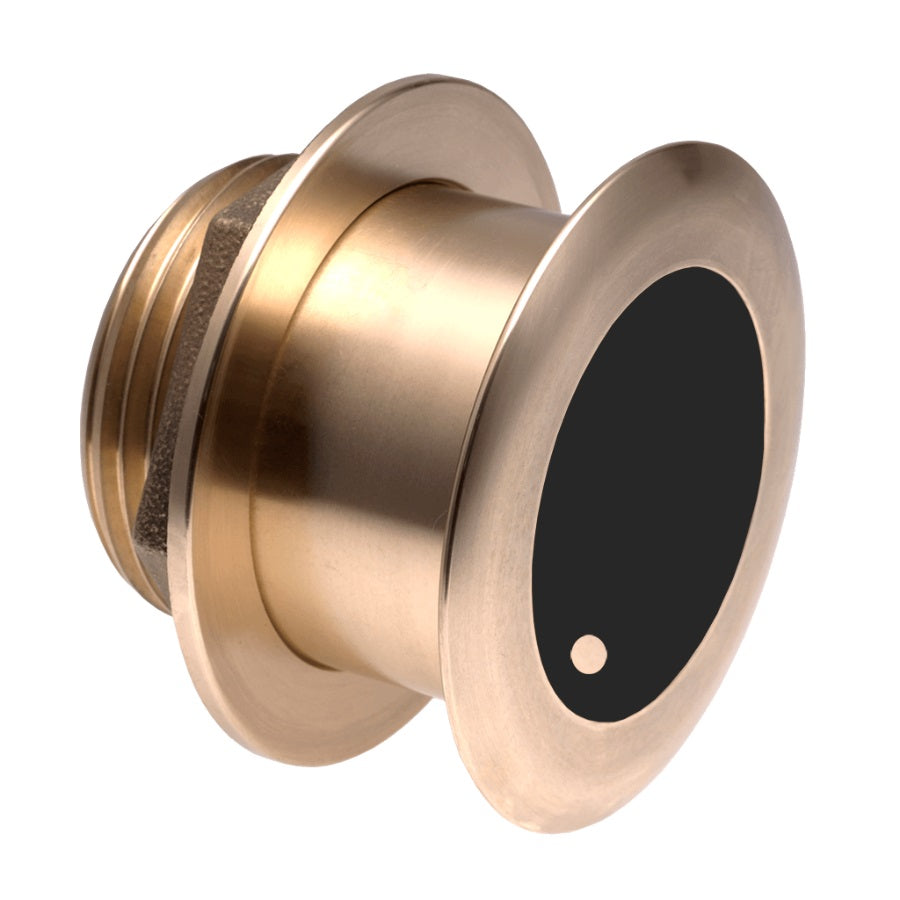

Airmar B175C-MW Transducer Medium Wide Beam Tilted Element.

Airmar B175MW Medium Ultra-Wide CHIRP-Ready Tilted Element™ Thru-Hull Transducers

Product Description

The Airmar B175MW Medium Ultra-Wide Tilted Element™ Thru-Hull transducers offer advanced sonar performance optimized for mid-depth fishing and pelagic species detection. Operating in the medium CHIRP range of 60-100 kHz, these 1 kW transducers deliver a wide beamwidth of 57° to 73° port/starboard and 16° fore/aft, providing extensive coverage beneath the boat. Available in three fixed tilt angles—20°, 12°, and 0°—these units are designed to match hull deadrise angles from 16° to 24°, 8° to 15°, and 0° to 7°, respectively, ensuring accurate and efficient sonar coverage.

Each transducer features a durable bronze housing suitable for fiberglass or wood stepped, planing, or displacement hulls, designed for low-profile thru-hull installation. The transducers support depth and fast-response water temperature sensing and include Airmar’s exclusive Xducer ID® technology for easy system integration. Installation is simplified with 9-meter Mix-N-Match cables, customizable to fit various connection needs.

Model:

Key Features

• Medium CHIRP frequency: 60-100 kHz

• Power: 1 kW

• Max depth: 400 m (1,300 ft)

• Ultra-wide beamwidth: 57° to 73° port/starboard, 16° fore/aft

• Depth and fast-response water temperature sensor

• Bronze housing ideal for stepped, planing, or displacement fiberglass or wood hulls

• Fixed tilt angles of 20°, 12°, or 0° for optimized hull deadrise matching

• Low-profile thru-hull design with urethane acoustic window

• Mix-N-Match cable for flexible networking and easy installation

• Built-in Airmar Xducer ID® technology for plug-and-play compatibility

• Ideal for pelagic fishing and mid-depth sonar performance

Comparison Table

What’s in the Box

• B175MW Medium Ultra-Wide CHIRP-ready Tilted Element™ Thru-Hull Transducer

• 9-meter Mix-N-Match cable
