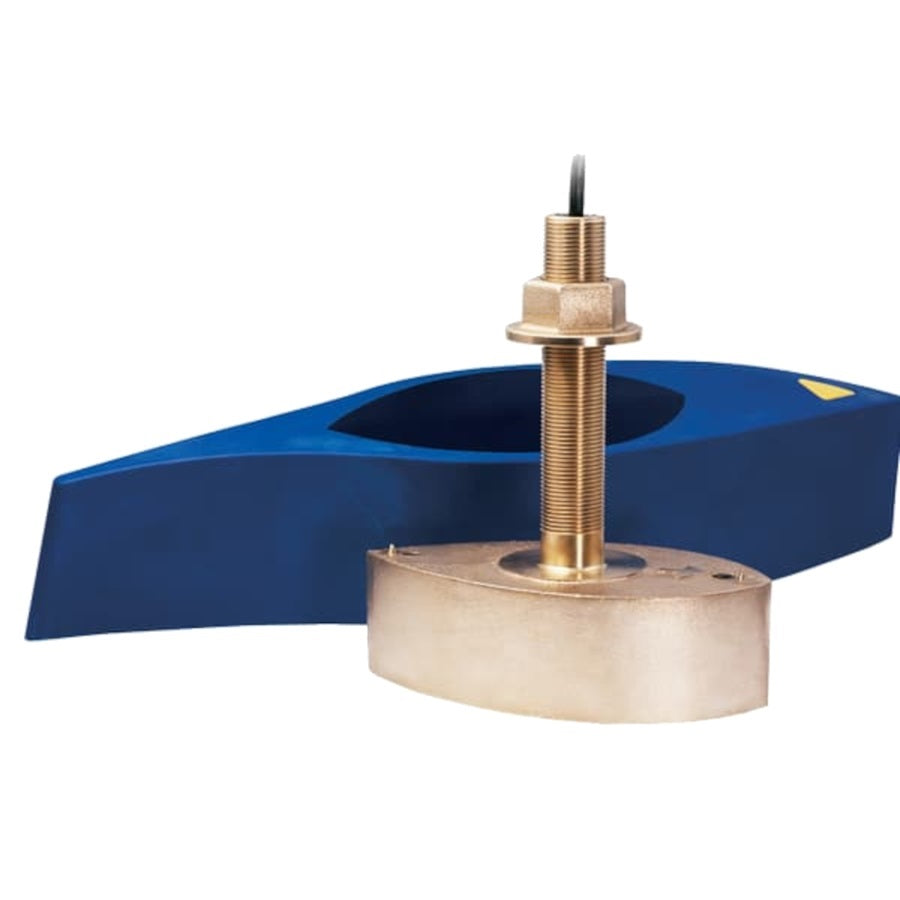

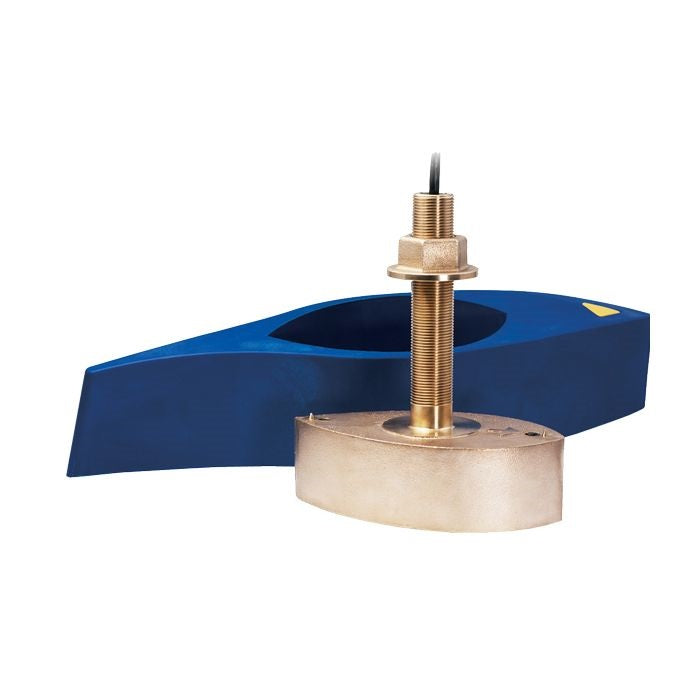

Airmar B265C CHIRP Bronze Thru-Hull Transducers for Furuno with Fairing
Couldn't load pickup availability
Description
Description
Airmar B265C CHIRP Bronze Thru-Hull Transducers for Furuno | 1kW Low/High or Low/Medium with Fairing
High-Performance Dual-Band CHIRP for Deep and Mid-Water Targeting
Description
The Airmar B265C series provides serious anglers with professional-grade sonar clarity using CHIRP technology across dual frequency bands. Whether you choose Low/High (LH) for deep ocean structure or Low/Medium (LM) for pelagic mid-depth species, both models deliver 1kW of power and unmatched fish-target precision.
Designed with a bronze thru-hull housing and high-speed fairing, these transducers track reliably at over 30 knots. The B265C-LH covers 42–65 kHz and 130–210 kHz, reaching depths up to 3,000' for low and 1,000' for high frequencies—perfect for deep bottom fishing and detailed structure imaging.
The B265C-LM targets 42–65 kHz and 85–135 kHz, ideal for gamefish suspended in the water column or close to structure. With Xducer ID® technology, Furuno systems instantly recognize and optimize for the connected transducer.
Both options include a Furuno 12-pin Mix-n-Match cable and high-speed fairing kit for streamlined installation.
Variant Key (Furuno Cable Options)
| Model Number | Frequency Bands | Beamwidth (LF/MF/HF) | Max Depth (LF/MF/HF) | Cable Model |
|---|---|---|---|---|
| B265LH-12F | Low/High | 25°–16° / — / 10°–6° | 914 m / — / 304 m | MMC-12F |
| B265C-LM-12F | Low/Medium | 25°–16° / 16°–11° / — | 914 m / 457 m / — | MMC-12F |
