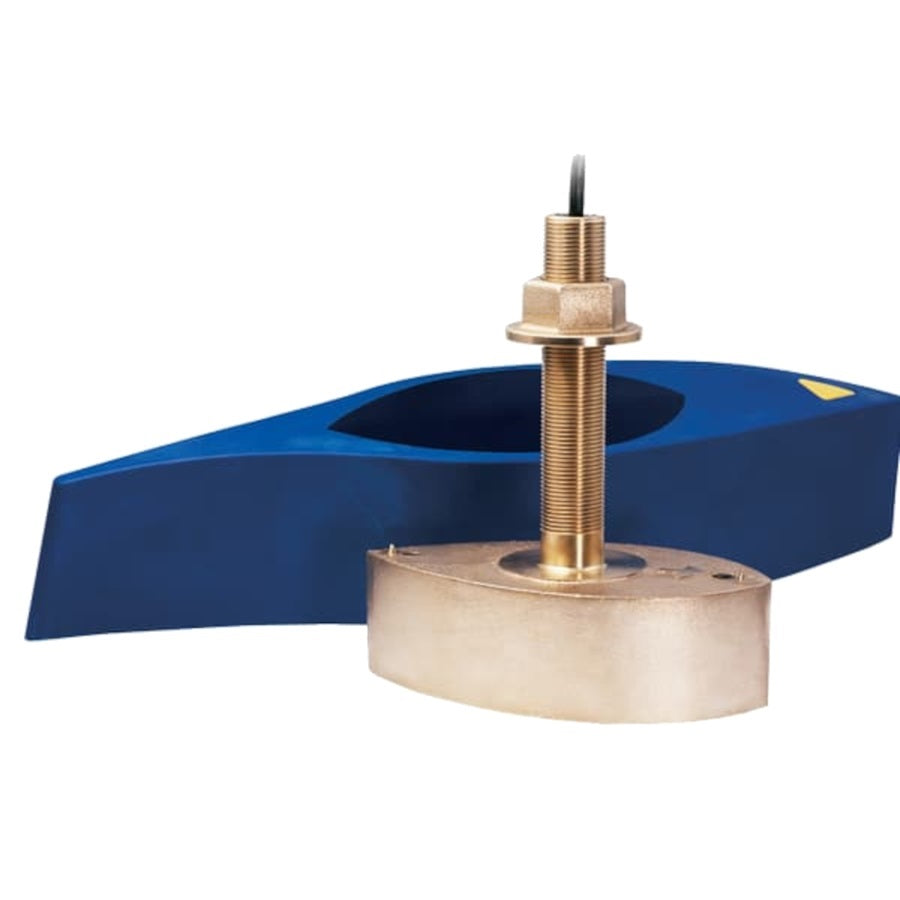

Airmar B265C CHIRP 1kW Bronze Thru-Hull Transducer – Low/High or Low/Medium (Mix-n-Match Connector)
Airmar B265C Series with Mix-n-Match Connector – Ready for Custom Integration
Description
Built for anglers who demand serious sonar clarity and control, the Airmar B265C series delivers CHIRP dual-band performance in a robust bronze thru-hull housing. Featuring Mix-n-Match connectors, these models offer flexible pairing with a range of CHIRP-compatible fish finders and MFDs (via the appropriate MMC cable, sold separately).
-
B265C-LH combines Low (42–65 kHz) and High (130–210 kHz) CHIRP for detailed structure tracking and deep bottom detection.
-
B265C-LM offers Low (42–65 kHz) and Medium (85–135 kHz) CHIRP, ideal for water-column clarity and mid-depth versatility.
Both models come with a high-performance fairing block to improve signal quality at speed and feature Xducer ID® technology for plug-and-play integration.
Variant Key
| Model | Frequency Bands | Beamwidth (LF/MF/HF) | Max Depth (LF/MF/HF) | Connector Type |
|---|---|---|---|---|
| B265LH-MM | Low/High | 25°–16° / — / 10°–6° | 914 m / — / 304 m | Mix-n-Match (No Cable) |
| B265C-LM-MM | Low/Medium | 25°–16° / 16°–11° / — | 914 m / 457 m / — | Mix-n-Match (No Cable) |
