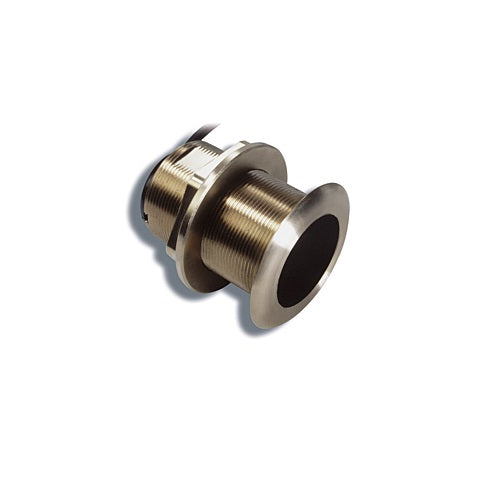

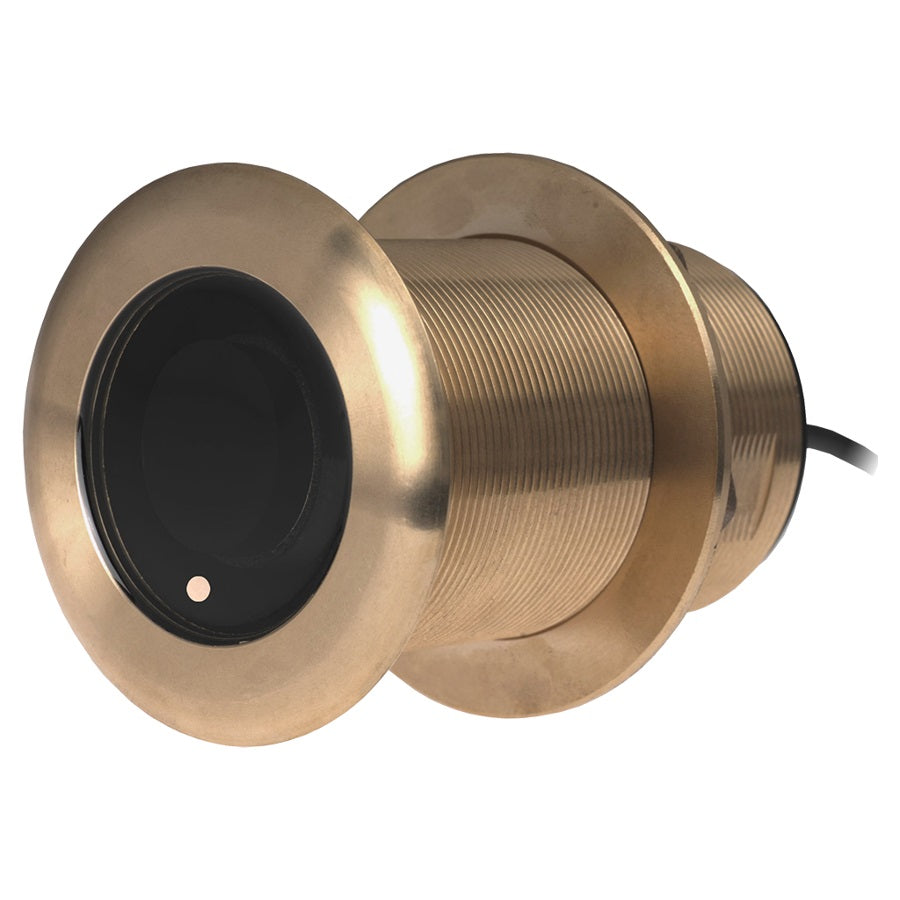

Airmar B60 50/200 kHz 600W Tilt Bronze Thru-Hull Transducer with Garmin Connectors.

Airmar B60 600W 50/200 kHz Bronze Tilted Element Transducer – Garmin Compatible

Description

Models:

B60-12-8G (12° Tilt)

B60-20-8G (20° Tilt)

Designed for trailerable and center-console boats, the Airmar B60 is a compact, low-profile transducer that delivers reliable dual-frequency performance in a clean bronze housing. The tilted element design provides built-in deadrise compensation, ensuring a vertical beam and more accurate sonar readings—without the need for an external fairing block.

With 600 watts of power and both 50 kHz and 200 kHz frequencies, the B60 performs well in both deep and shallow waters. It’s optimized for hulls with an 8°–15° deadrise and mounts flush to minimize drag without affecting your boat’s performance. The Garmin 8-pin connector makes it a plug-and-play fit for many Garmin fishfinder/chartplotter systems.

Key Features:

• Dual-frequency: 50 kHz (wide 45° beam) and 200 kHz (narrow 12° beam)

• Max depth: 1200' (low freq), 700' (high freq)

• 600W power rating

• Tilted element compensates for hull deadrise

• Bronze housing for fiberglass/wood hulls

• Flush-mount design minimizes drag

• Includes depth and fast-response temperature sensor

• 10 m (33') cable with Garmin 8-pin connector

Variants Key
