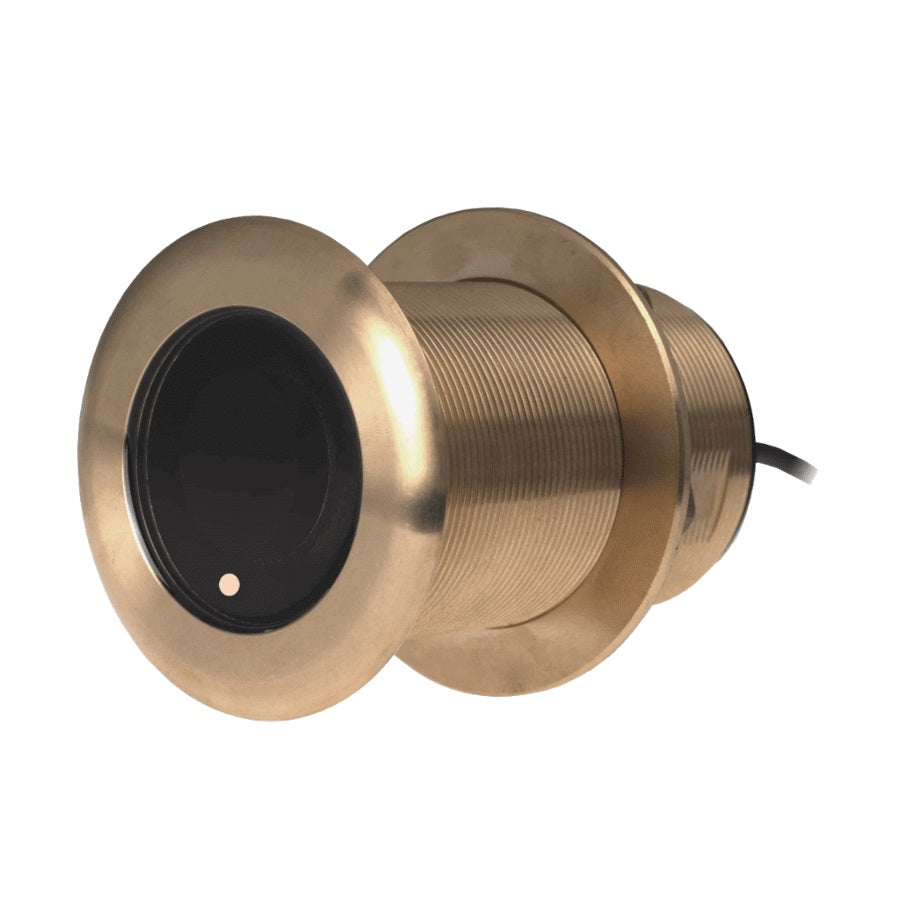

Airmar B75C- HW High Wide CHIRP With Mix-n-Match Plug Tilted Element.

Airmar B75 High Wide CHIRP-Ready Tilted Element™ Thru-Hull Transducers

Product Description

The Airmar B75 High Wide (HW) CHIRP transducers are designed for high-frequency sonar operation in the range of 150-250 kHz, delivering exceptional shallow-water performance, detailed bottom imagery, and clear fish-target returns. These 600W powered transducers feature a wide 30° beamwidth, providing substantial coverage beneath the boat. Available in fixed Tilted Element™ configurations of 0°, 12°, and 20°, these transducers compensate for hull deadrise angles from 0° to 7°, 8° to 15°, and 16° to 24° respectively, orienting the sonar beam accurately downward for improved echo returns and depth precision.

Housed in durable bronze with a low-profile thru-hull design, the B75HW models are well suited for stepped, planing, or displacement hulls, making them ideal for smaller boats such as center consoles. They include fast-response water temperature sensors and use Airmar’s exclusive Xducer ID® technology for easy system integration. The 9-meter cable is finished with a Mix-N-Match 12-pin MMC connector for flexible networking options.

Model:

Key Features

• High frequency CHIRP range: 150-250 kHz

• Power rating: 600W with depth tracking to 106 m (350 ft)

• Wide beamwidth: 30° for excellent coverage and fish-target separation

• Fast-response water temperature sensing

• Low-profile bronze thru-hull housing designed for efficient performance at speed

• Fixed tilt element adjustments to match hull deadrise angles

• Durable acoustic urethane window

• 9 m (30 ft) Mix-N-Match cable with Airmar 12-pin MMC connector

• Exclusive Xducer ID® for seamless plug-and-play integration

• Suitable for fiberglass or wood stepped, planing, or displacement hulls

Specifications

What’s in the Box

• B75 High Wide CHIRP-Ready Tilted Element™ Thru-Hull Transducer

• 9 m Mix-N-Match 12-pin MMC Cable
