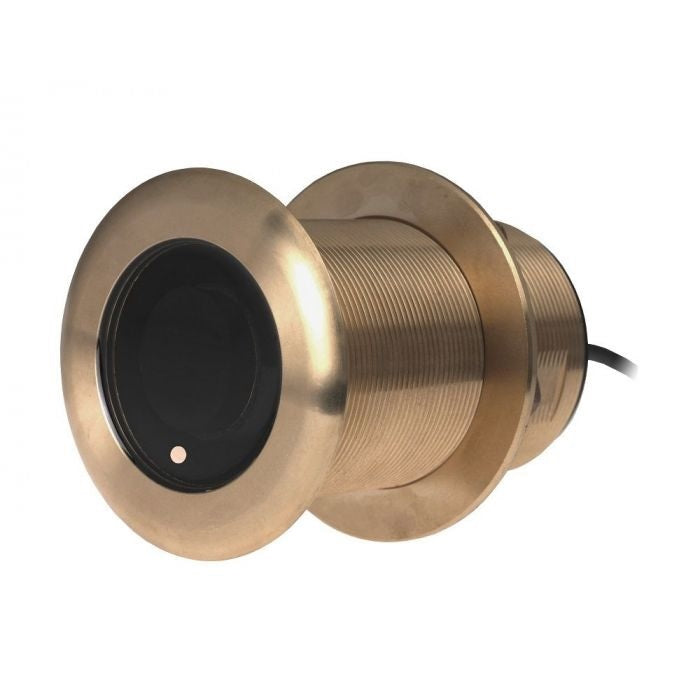

Airmar B75C-0-L CHIRP Bronze Thru-Hull Transducer with Furuno Connectors.
Couldn't load pickup availability
Description
Description
Airmar B75C 0° Tilt Low CHIRP Bronze Transducer – Furuno Compatible
Description
Model Numbers:
-
B75C-0-L-10F
-
B75C-0-L-12F
The Airmar B75C-0-L is a 600W, low-frequency CHIRP transducer with a 0° tilted element designed for deep-water performance and broader sonar coverage. Its 40–75 kHz frequency band delivers greater depth range and wider beamwidth, perfect for vessels targeting fish and structure in deep water.
This bronze thru-hull transducer includes fast-response temperature sensing and is compatible with Furuno 10-pin and 12-pin systems via Mix-N-Match cables. It’s ideal for boats with flat hulls (0° to 7° deadrise) and high-speed performance in open water.
Key Features:
-
Low CHIRP frequency: 40–75 kHz
-
Wide beam (32° to 21°) for broad coverage
-
0° tilt for flat-bottom hulls
-
Max depth: 1,200 ft
-
Xducer ID® technology for smart integration
-
Durable bronze housing
-
Compatible with Furuno 10-pin and 12-pin displays
Variants Key
| Model | Connector Type | CHIRP Range | Beamwidth | Tilt | Max Depth |
|---|---|---|---|---|---|
| B75C-0-L-10F | Furuno (10-pin) | 40–75 kHz (Low) | 32° to 21° | 0° | 1,200 ft |
| B75C-0-L-12F | Furuno (12-pin) | 40–75 kHz (Low) | 32° to 21° | 0° | 1,200 ft |
