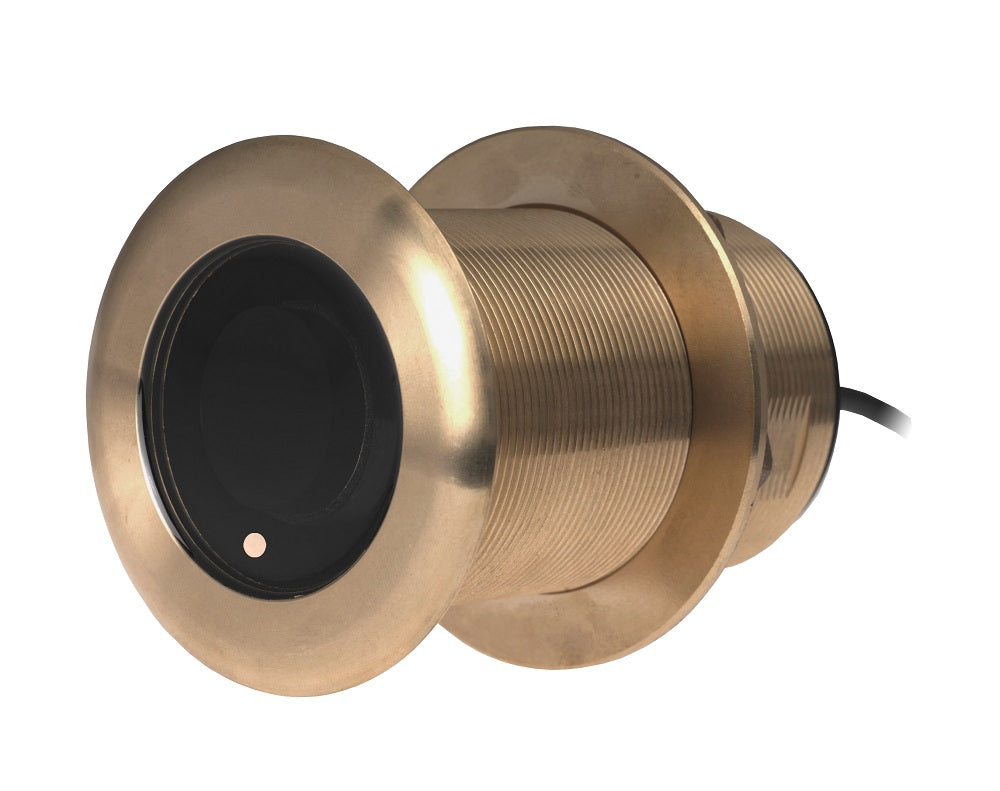

Airmar B75C-0-M Medium CHIRP Bronze Thru-Hull Transducer for Garmin.

Airmar B75C 0° Tilt Medium CHIRP Transducer with Garmin Connector

Description

Model Numbers:

• B75C-0-M-12G

• B75C-0-M-8G

The Airmar B75C-0-M is a compact, low-profile CHIRP transducer engineered for shallow to mid-depth fishing with exceptional clarity and performance. With a 0° tilt, it’s optimized for flat hulls (0°–7° deadrise) and installs flush to maintain a streamlined profile.

Operating at a medium CHIRP frequency range of 80 to 130 kHz, this transducer provides excellent target separation, crisp bottom detail, and a wide beamwidth for increased coverage. Built with a bronze housing and designed for use in fiberglass or wood hulls, it's an ideal sonar solution for smaller center-console and recreational boats.

Key Features:

• CHIRP Range: 80–130 kHz (Medium)

• Beamwidth: 24° to 16°

• Power: 600W

• Max Depth: 900 ft

• Low-profile bronze thru-hull housing

• Ideal for fiberglass or wood hulls

• Xducer ID® technology

• Garmin 8-pin and 12-pin Mix-N-Match cable options

Variants Key
