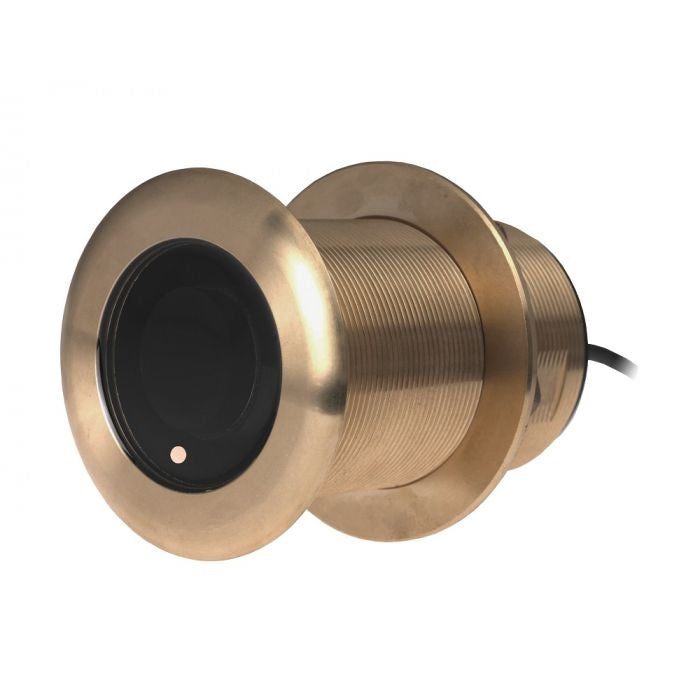

Airmar B75C-0d Tilted Medium CHIRP Si-Tex 8-Pin Cables.

Airmar B75C 0° Tilted Element Medium and Low CHIRP Bronze Thru Hull with Si-Tex 8-Pin Mix-N-Match Cable

The Airmar B75C medium and low-frequency CHIRP bronze thru-hull transducers are designed for boats up to 8 m (25’) with fiberglass or wood hulls. These transducers feature permanently tilted ceramic elements to compensate for hull deadrise, providing accurate, straight-down sonar beams when installed flush with the hull. They include depth and fast-response water-temperature sensors and are low-profile for minimal drag and excellent sonar resolution at speed.

Model Numbers

• B75C-0-M-BB: Medium CHIRP, 80–130 kHz, 24° to 16° beamwidth, 600 W, max depth 274 m (900 ft), deadrise 0° to 7°

• B75C-0-L-BB: Low CHIRP, 40–75 kHz, 32° to 21° beamwidth, 300 W, max depth 366 m (1200 ft), deadrise 0° to 7°

Key Features

• CHIRP-ready transducers delivering up to 50 kHz total bandwidth (medium) or 35 kHz (low)

• Enhanced bottom detail and fish separation with medium frequency; deeper water coverage with low frequency

• Patented Xducer ID® technology for smart device integration

• Bronze housing with urethane acoustic window

• Low profile, flush mounting for easy installation

• Compatible with Si-Tex 8-pin systems via Mix-N-Match cable

Specifications Table

What’s in the Box

• B75C-0-M-BB or B75C-0-L-BB Transducer

• MMC-BB Mix-N-Match Cable
