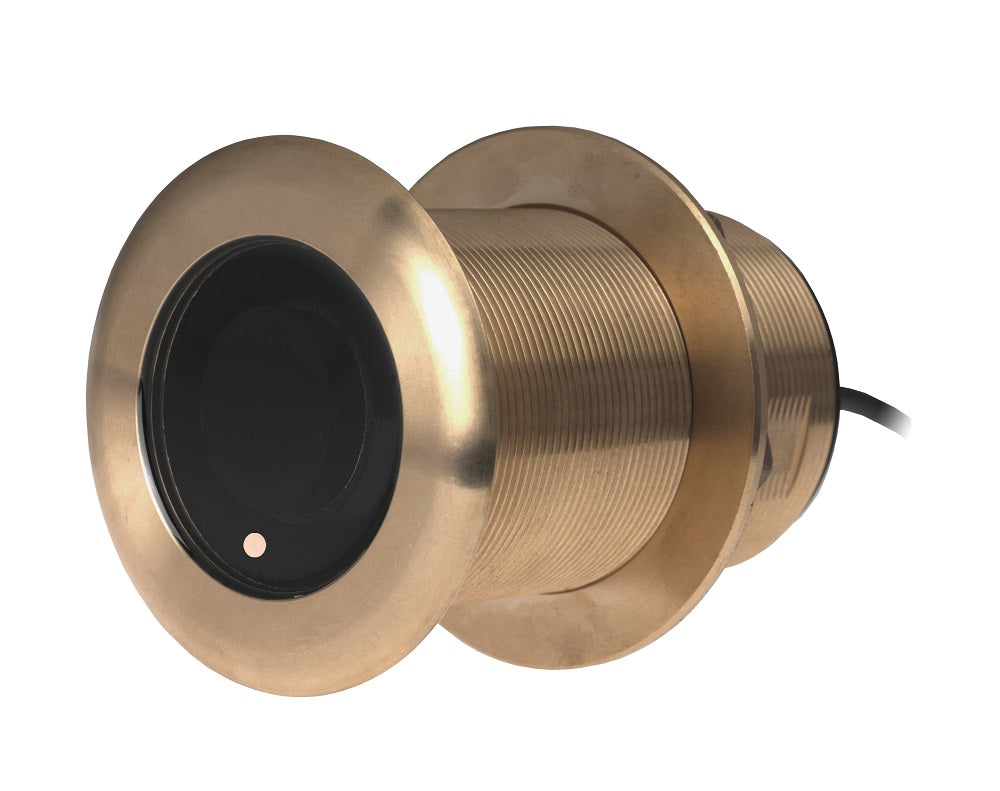

Airmar B75C-20-H CHIRP 600W 20° Tilt Thru-Hull Transducer with Humminbird Connectors.

Airmar B75C 20° Tilt High-Frequency CHIRP Thru-Hull Transducer – Navico Compatible

The Airmar B75C-20-M is a high-frequency, 1 kW CHIRP transducer with a 20° tilted ceramic element, designed for vessels with hull deadrise between 16° and 24°. Operating across a CHIRP range of 130–210 kHz with an 80 kHz bandwidth, it delivers crisp, high-resolution sonar images suitable for locating baitfish, game fish, and underwater structures with remarkable clarity.

Constructed with a durable bronze housing, this transducer is optimized for fiberglass or wooden hulls, providing a nearly flush installation that reduces drag at speed. It seamlessly connects to Humminbird units via Mix-N-Match 9-pin or 14-pin connectors, ensuring broad compatibility with modern sonar systems.

Key Features

• CHIRP frequency range: 130–210 kHz

• Beamwidth: 15° to 9°

• Tilted element: 20° for 16°–24° hull deadrise

• Max depth: 700 ft (213 m)

• High-resolution bottom and fish detection

• Bronze low-profile thru-hull housing

• Fast-response water temperature sensor

• Exclusive Xducer ID® technology for auto configuration

• Compatible with Humminbird systems using Mix-N-Match cables

Models:

Specifications

• Cable length: 9 m (30 ft)

• Acoustic window: Urethane

• Housing material: Bronze

• Suitable for hull deadrise: 16°–24°

• Power: 1 kW

• Max depth: 213 m / 700 ft

What's in the Box

• B75C-20-M thru-hull transducer assembly

• Mix-N-Match connector cable (depending on model: 9-pin or 14-pin)

• Mounting hardware including fairing block and anti-rotation bolt
