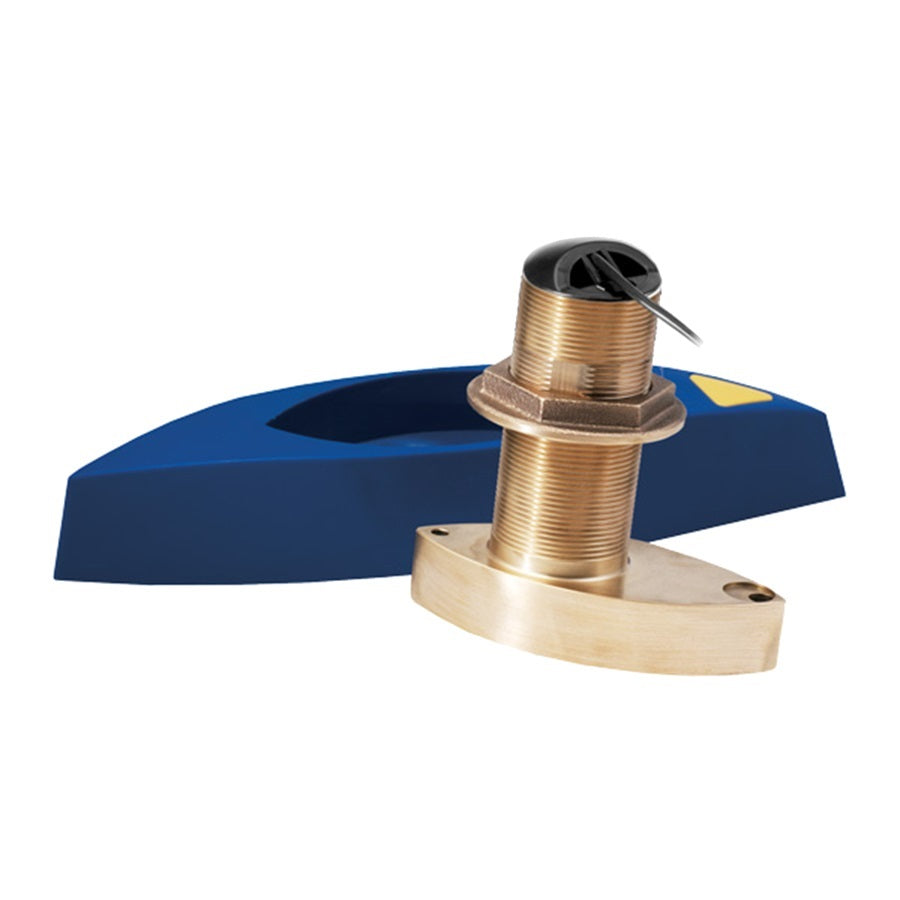

Airmar B785C-M CHIRP 600W Bronze Thru-Hull Transducer with Furuno Connectors.

Airmar B785C Medium CHIRP Bronze Thru-Hull Triducer – Furuno Compatible

Description

Model Numbers:

• B785C-M-10F

• B785C-M-12F

The Airmar B785C-M is a compact, CHIRP-ready bronze thru-hull triducer ideal for small offshore and freshwater fishing vessels. With a 600-watt power rating and medium CHIRP range of 80 to 130 kHz, it provides detailed target separation, excellent shallow to mid-depth performance, and full fish coverage at depths up to 900 ft.

The transducer includes a high-performance fairing block, reducing drag and improving clarity even at speeds exceeding 30 knots. Whether trolling in shallow waters or scanning deeper structure, the B785C-M delivers efficient sonar performance in a streamlined package.

Key Features:

• CHIRPs from 80 to 130 kHz

• Beamwidth: 24° to 16°

• Max depth: 900 ft (274 m)

• 50 kHz of total bandwidth

• Fast-response temperature sensor

• Bronze housing with fairing for optimized high-speed use

• Patented Xducer ID® technology

• Recommended for use on planing or displacement hulls

• Compatible with Furuno systems
