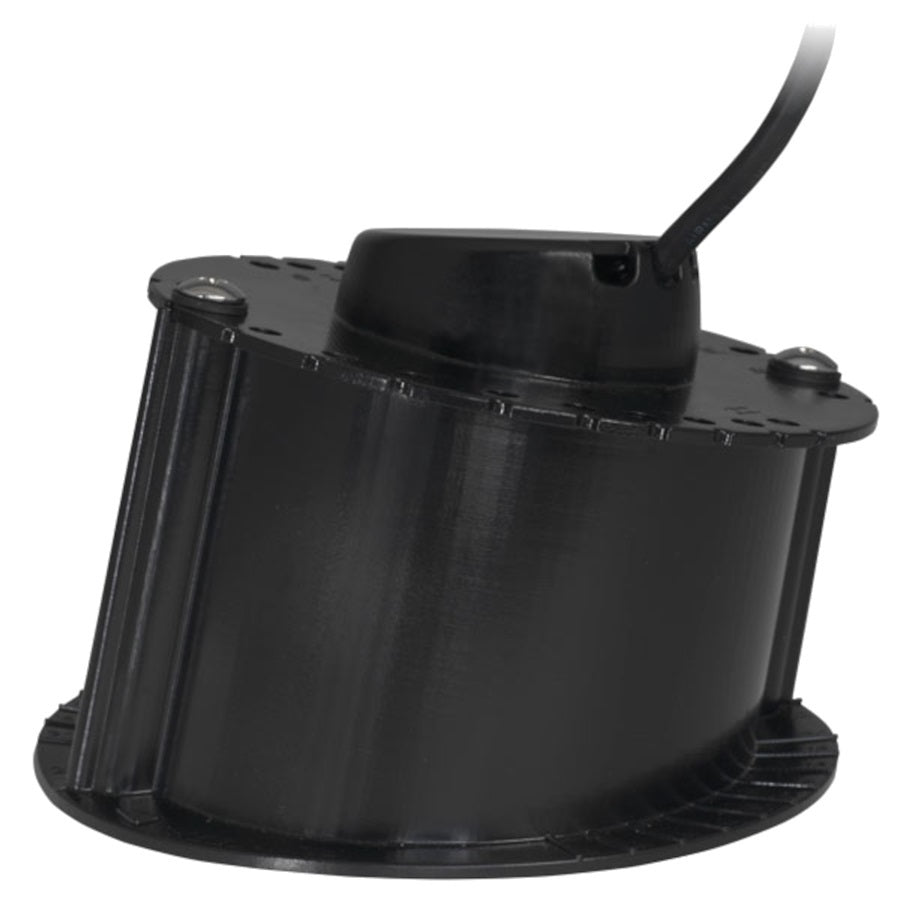

Airmar CHIRP In-Hull Transducers – M135C-M & M285C-HW with Humminbird Connectors.

Variant Options

CHIRP Frequency:

• Medium (M135C-M)

• High-Wide (M285C-HW)

Connector Type:

• Humminbird 14-Pin

• Humminbird 9-Pin

---

Model Numbers

• M135C-M-14HB

• M135C-M-HB

• M285C-HW-14HB

• M285C-HW-HB

---

Description

Upgrade your sonar system with Airmar’s premium in-hull CHIRP transducers. Choose the M135C-M for mid-depth, all-purpose scanning, or go with the M285C-HW for wide-angle, high-frequency clarity in shallow water. Designed for trailerable boats and available with Humminbird 14-pin or 9-pin Mix-N-Match cables.

---

CHIRP Options Overview

M135C-M – Medium CHIRP

• Frequency Range: 85–135 kHz

• Beamwidth: 24°–16°

• Max Depth: 1,500 ft (457 m)

• Output: 1 kW

• Depth-only transducer

• Urethane housing, liquid-filled

• Adjustable deadrise: 2° to 20°

• Perfect for fiberglass boats up to 25'

• Includes: M135C transducer, M135 flange, MMC cable (14HB or HB)

M285C-HW – High-Wide CHIRP

• Frequency Range: 150–250 kHz

• Beamwidth: Fixed 25°

• Max Depth: 700 ft (215 m)

• Output: 1 kW

• Depth-only transducer

• Urethane housing, liquid-filled

• Adjustable deadrise: 2° to 20°

• Ideal for shallow/murky water with wide coverage

• Includes: M285C-HW transducer, MMC cable (14HB or HB)

---

What’s in the Box

• Transducer (M135C-M or M285C-HW)

• Mounting Flange (M135C only)

• Humminbird Mix-N-Match Cable (9-Pin or 14-Pin)

---
