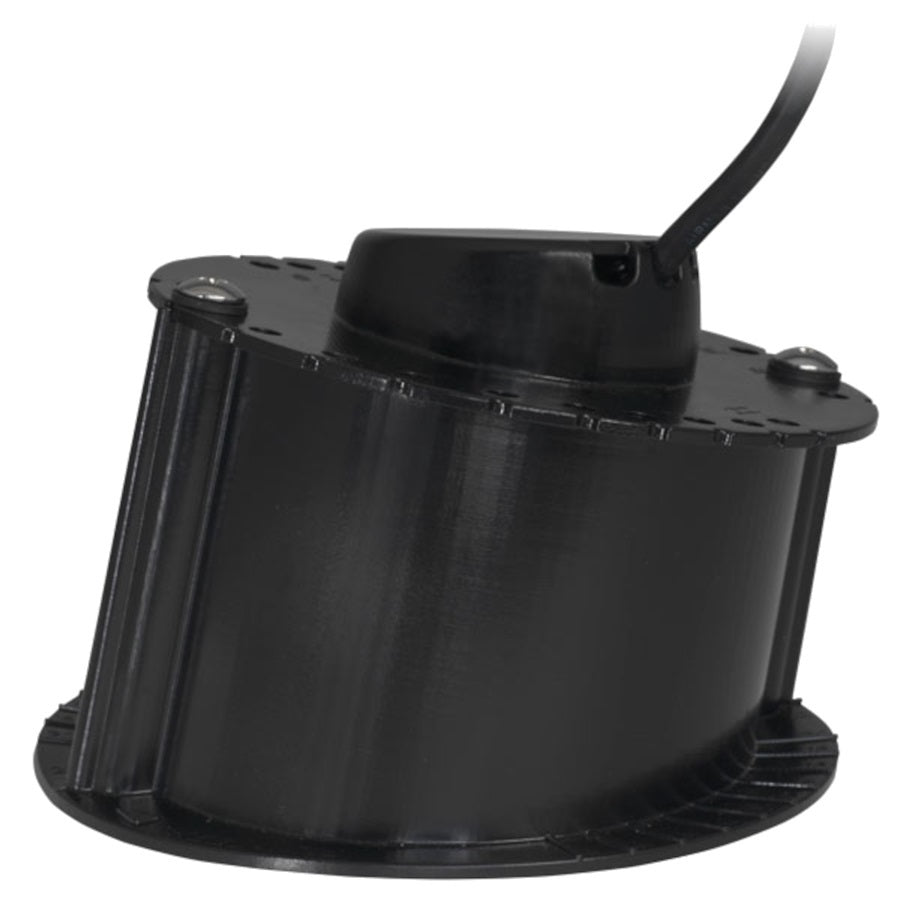

Airmar CHIRP In-Hull Transducers – M135C-M & M285C-HW with Navico Connectors.

Variant Options

CHIRP Frequency:

• Medium (M135C-M)

• High-Wide (M285C-HW)

Connector Type:

• Navico 9-Pin

• Navico Blue 7-Pin

---

Model Numbers

• M135C-M-9N

• M135C-M-BL

• M285C-HW-9N

• M285C-HW-BL

---

Description

Equip your boat with top-tier sonar clarity using Airmar’s CHIRP In-Hull transducers. Select the M135C-M for medium CHIRP precision in murky or mixed waters, or the M285C-HW for high-frequency, wide-beam scanning in shallower depths. Both models are ideal for trailered or lifted fiberglass boats and are available with Navico-compatible connectors.

---

CHIRP Options Overview

M135C-M – Medium CHIRP

• Frequency Range: 85–135 kHz

• Beamwidth: 24°–16°

• Max Depth: 1,500 ft (457 m)

• Output: 1 kW

• Depth-only transducer

• Liquid-filled urethane housing

• Adjustable deadrise: 2° to 20°

• Includes: M135C transducer, mounting flange, MMC cable (9N or BL)

M285C-HW – High-Wide CHIRP

• Frequency Range: 150–250 kHz

• Beamwidth: Fixed 25°

• Max Depth: 700 ft (215 m)

• Output: 1 kW

• Depth-only transducer

• Liquid-filled urethane housing

• Adjustable deadrise: 2° to 20°

• Includes: M285C-HW transducer, MMC cable (9N or BL)

---

What’s in the Box

• Transducer (M135C-M or M285C-HW)

• M135 flange (for M135C-M only)

• Navico Mix-N-Match Cable (9-Pin or Blue 7-Pin)

---
