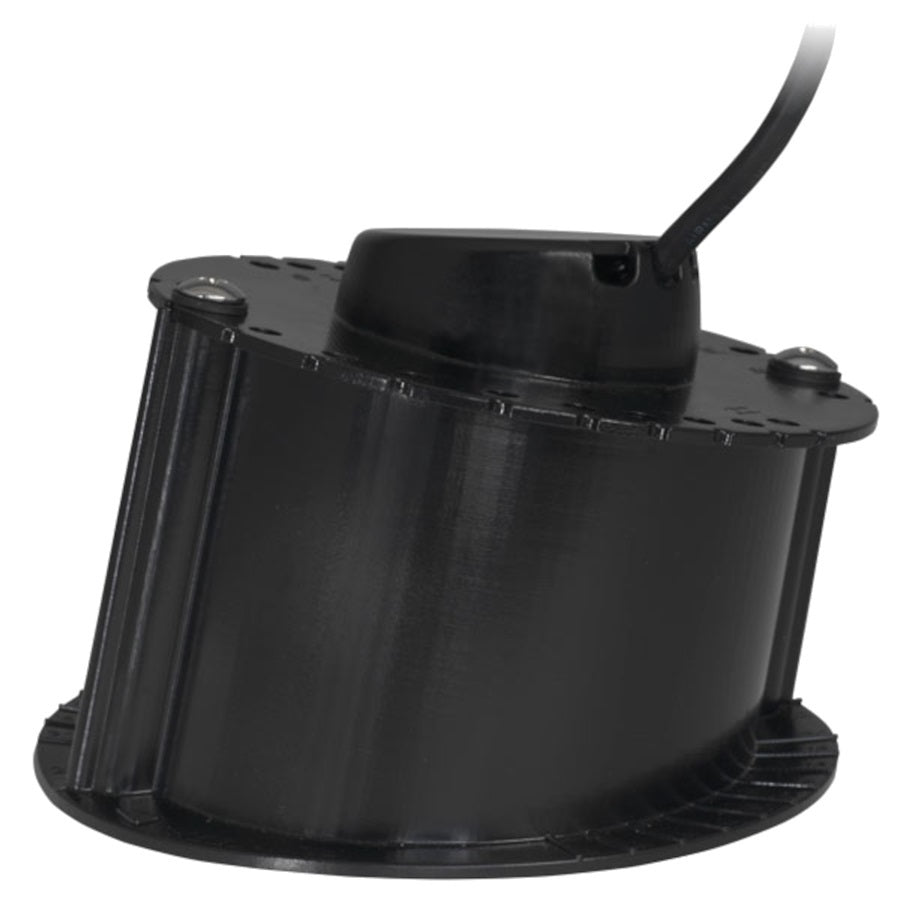

Airmar M135C-M Transducer Medium CHIRP Si-Tex 8-Pin Cable

Product Description

The Airmar M135C-M is a medium CHIRP in-hull transducer designed for reliable sonar performance, available with Si-Tex 8-pin cable compatibility for marine navigation systems.

Product Overview

This transducer supports fishing and boating applications on solid fiberglass hulls up to 36 feet, providing clear target resolution and bottom detail in offshore and inshore waters up to 1,500 feet deep.

Key Specifications

• Frequency: Medium CHIRP 85-135 kHz with 16° to 11° beamwidth.

• Power: 1 kW RMS for extended depth capability.

• Mount: In-hull with adjustable deadrise 0°-22° via plastic base.

• Connector: Si-Tex 8-pin cable (10m length) for plug-and-play setup.

Technical Specifications

• Functions: Depth only (no temperature); max depth 457m (1,500').

• Housing: Urethane acoustic window in plastic mount filled with non-toxic antifreeze.

• Beam performance: 50 kHz bandwidth covering 88/107 kHz frequencies.

What's in the Box

• One (1) Airmar M135C-M transducer with Si-Tex 8-pin cable and mounting base.
