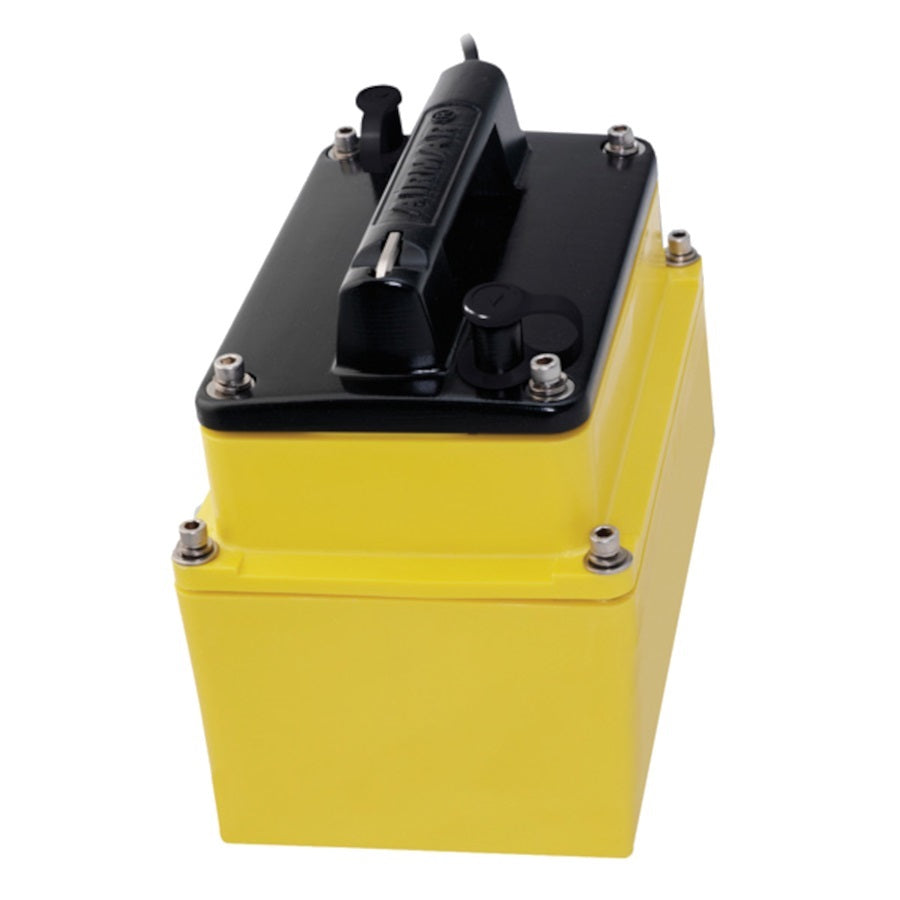

Airmar M265C- 1kw Low High CHIRP.

Airmar M265C-LH Low-High CHIRP In-Hull Transducers

Product Description

The Airmar M265C-LH series are CHIRP-ready dual-band in-hull transducers designed to deliver exceptional deep-water and mid-depth sonar performance without requiring hull penetration. Offering 1 kW power, these transducers operate in both low frequency (42-65 kHz) for deep-water reach up to 914 m (3,000 ft) and high frequency (130-210 kHz) for detailed structure and fish-target separation in waters up to 304 m (1,000 ft). The transducers cover popular fishing frequencies such as 50 and 200 kHz and deliver a total bandwidth of 103 kHz.

Encased in a plastic housing with a mounting tank cut to the vessel’s deadrise angle, the M265C-LH units provide optimal orientation for accurate depth and temperature readings. Equipped with patented Xducer ID® technology, these transducers ensure seamless integration with compatible sonar systems. Available in two connector options, one with a Garmin 12-pin MMC cable (M265C-LH-12G) and one as bare wire (M265C-LH), they suit various installation preferences. The M265LH is an excellent choice for trailered or lifted boats where thru-hull installations are impractical.

Model:

Key Features

• Dual-band CHIRP operation: Low (42-65 kHz) and High (130-210 kHz) frequency

• Power rating: 1 kW

• Maximum depth: 914 m (3,000 ft) at low frequency; 304 m (1,000 ft) at high frequency

• Total bandwidth of 103 kHz covering popular fishing frequencies

• Plastic housing and mounting tank design for in-hull installation without drilling

• Adjustable mounting tank cut to boat deadrise for optimized sonar alignment

• Patented Xducer ID® technology for plug-and-play functionality

• Includes depth and fast-response water temperature sensing

• Beamwidth: 25°–16° at low frequency and 10°–6° at high frequency

• Suitable for deadrise up to 22° and tank installed parallel to hull centerline

Specifications

What’s in the Box

• Airmar M265C-LH In-Hull Dual-Band Transducer

• Garmin 12-Pin MMC Cable (M265C-LH-12G model) OR Bare Wire Cable (M265C-LH model)
