Airmar P75C Medium CHIRP In-Hull Transducer With Mix-N-Match Plug

Airmar P75C Medium CHIRP In-Hull Transducer – 600W for Fiberglass Hulls

In-Hull CHIRP Clarity for Compact Boats

---

Description:

Model Numbers by Connector:
Bare Wire – AIRP75CM0
Furuno 10-Pin – AIRP75CM10F
Garmin 8-Pin – AIRP75CM8G
Si-Tex 8-Pin – AIRP75CMBB

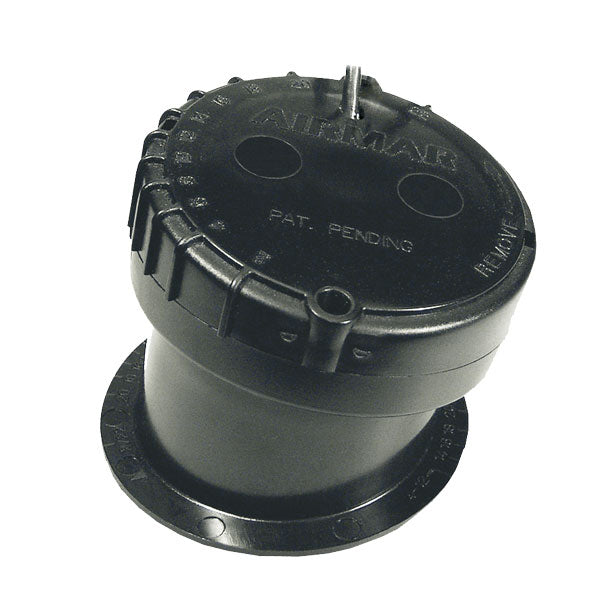

Airmar’s P75C-M transducer is the go-to solution for smaller fiberglass boats looking for clean, reliable sonar performance—without drilling into the hull. This 600-watt in-hull model operates on the Medium CHIRP band (80–130 kHz) to deliver excellent detail in freshwater or saltwater.

Ideal for trailered or lifted boats, the P75C mounts inside the hull using a liquid-filled urethane housing. No exterior protrusions, no risk of damage from sandbars or structure—just crisp sonar returns up to 700 feet deep.

Available with multiple connector options, including bare wire and plug-and-play compatibility with Furuno, Garmin, and Si-Tex systems.

---

Specifications:

• Power: 600W

• CHIRP Frequency: 80–130 kHz (Medium)

• Beamwidth: 24° to 16°

• Depth Range: Up to 700 ft (215 m)

• Mounting: In-Hull

• Housing: Liquid-filled urethane

• Hull Type: Solid fiberglass only

• Hull Deadrise: 2° to 20°

• Function: Depth only

• Weight: 0.45 kg (1.1 lb)

• Cable Length: 1 meter (Mix & Match)

• Xducer ID®: Included

---

What’s Included:

• Airmar P75C-M Transducer

• Mix & Match Connector Cable (per selected variant)

---
