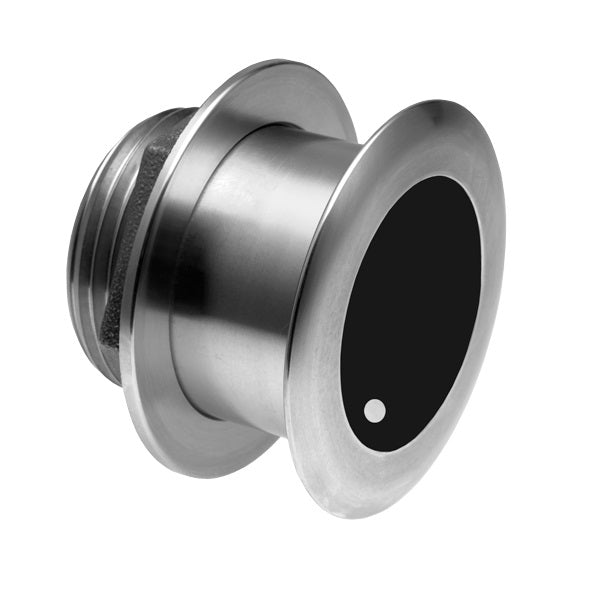

Airmar SS175C-0-H 0° Tilt High CHIRP Transducer with Mix-n-Match Plug

Airmar SS175C-0-H 0d Tilt

High CHIRP

Model: 41-842-1-01



The Airmar SS175C-0-H is a high-performance, CHIRP-ready thru-hull transducer engineered for precision in shallow to mid-depth saltwater. Operating in the high-frequency range of 130–210 kHz with a 0° fixed tilt, it's ideal for flat-bottomed boats with hull deadrise angles from 0° to 7°.

This model features a stainless steel housing, fast-response water-temperature sensor, and Airmar’s exclusive Xducer ID® technology for smart integration. With 1kW of power and up to 80 kHz of CHIRP bandwidth, it delivers enhanced target resolution, superior bottom tracking, and sharp fish separation.

Whether you’re navigating structure-rich coastlines or searching for gamefish inshore, the SS175C-0-H gives you unmatched clarity and performance in a compact, low-profile design.

---

Key Features:

• CHIRP Range: 130–210 kHz (High Frequency)

• Beamwidth: 15° to 9° (varies with frequency)

• Power Output: 1 kW

• Maximum Depth: Up to 1,000 ft (304 m)

• Tilt: 0° for flat hulls (0° to 7° deadrise)

• Housing Material: Stainless Steel

• Temperature Sensor: Yes

• Xducer ID® Technology: Yes

• Compatible Boat Size: Up to 36 ft (11 m)

• Includes: Mix-n-Match connector cable based on variant

---

What’s in the Box:

• SS175C-0-H Transducer (0° Tilt)

• MMC Connector Cable (varies by variant selection)

---

Variants:

---
