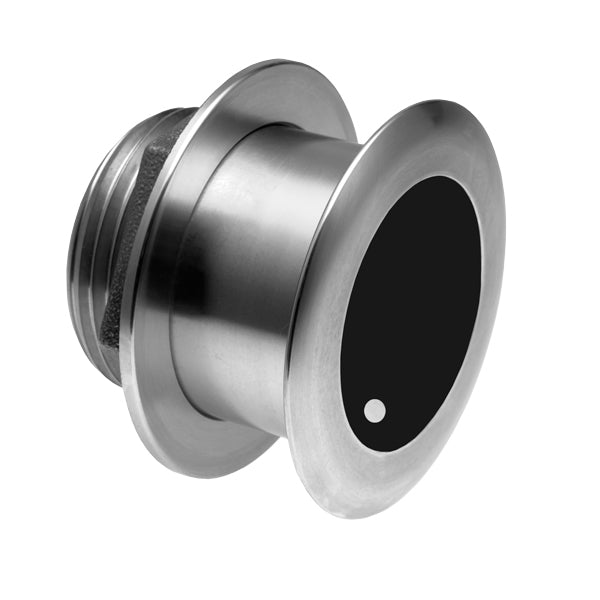

Airmar SS175C-0-L 0° Tilt Low CHIRP Transducer with Mix-N-Match Plug

Airmar SS175C-0-L 0° Tilt Low CHIRP with Mix-N-Match Plug

Serious Depth for Serious Fishing

Experience unmatched deep-water performance with the Airmar SS175C-0-L CHIRP transducer. Designed for steel or aluminum hulls up to 36 feet, this low-frequency, 1 kW thru-hull transducer CHIRPs from 40 kHz to 60 kHz with a 32° to 21° beamwidth. With fast-response water-temperature sensing and exclusive Xducer ID® technology, it's built for anglers who demand more from their sonar—whether offshore or in the canyon.

The tilted element design compensates for hull deadrise, ensuring the ceramic element is always perfectly aligned for strong echo returns and accurate bottom tracking—even at speed. Stainless steel housing delivers long-term reliability in harsh marine environments.

This listing includes four variants with connector options to integrate seamlessly with your electronics system.

Key Features

• Depth & fast-response water-temperature sensor

• CHIRPs from 40–60 kHz with 32° to 21° beamwidth

• 1 kW output with max depth of 2,500 ft (762 m)

• Stainless steel, low-profile thru-hull housing

• Exclusive Xducer ID® technology

• Great for boats up to 36 ft (11 m)

• Designed for steel or aluminum hulls

Specifications

• Model: SS175C-0-L

• Weight: 2.7 kg (6 lb)

• Hull Deadrise: 0° to 7°

• Hole Size: 98 mm (3-7/8")

• Acoustic Window: Urethane

• Ceramic Assemblies: Seven internal broadband elements

What's in the Box

• Airmar SS175C-0-L CHIRP Transducer

• Mix & Match Cable (varies by selected connector)
