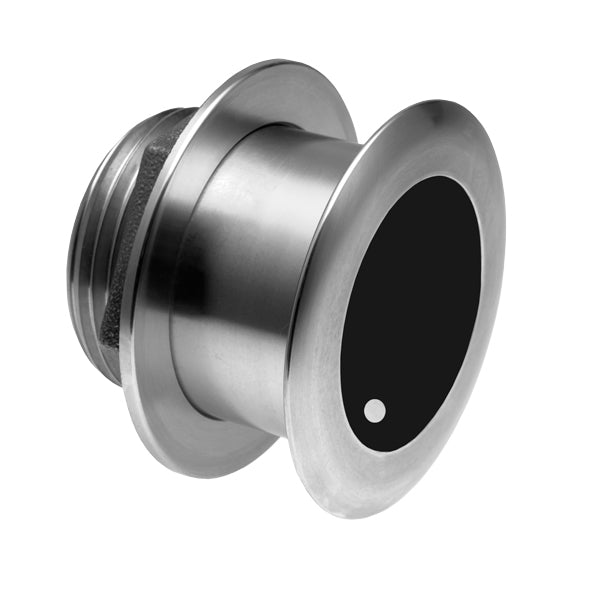

Airmar SS175C-0-M 0° Tilt Medium CHIRP Transducer with Mix-n-Match Plug

The Airmar SS175C-0-M is a 1kW, thru-hull transducer designed for serious anglers seeking precise target definition and reliable performance at medium depths. This Medium CHIRP transducer operates across a frequency range of 85 kHz to 135 kHz, offering 16° to 11° beamwidth and maximum depth capabilities up to 1,500 feet (457 meters).

Its 0° tilt and low-profile stainless steel housing are ideal for boats up to 36 feet, especially those with flat hull bottoms. Thanks to Xducer ID® technology, your sonar system automatically configures itself for optimal performance.

Whether you're fishing in coastal waters or deeper lakes, this Medium CHIRP transducer delivers wide coverage and crisp echo returns — making it easier to distinguish individual fish and structures.

Key Features:

• Depth and fast-response water-temperature sensor

• CHIRP-ready Medium frequency: 85 kHz to 135 kHz

• Beamwidth: 16° to 11°

• Power: 1 kW

• Max Depth: 1,500 ft (457 m)

• Tilt Angle: 0°

• Ideal for boats up to 11 m (36 ft)

• Compatible with fiberglass, wood, and metal hulls

• Durable stainless steel housing

• Flush-mount thru-hull design

• One internal ceramic assembly

• Mix-n-Match connector style

• Xducer ID® technology

Specifications:

• Weight: 2.7 kg (6 lb)

• Hull Deadrise: 0° to 7°

• Acoustic Window: Urethane

• Hole Size: 98 mm (3-7/8")

What's in the Box:

• Airmar SS175C-0-M Transducer (0° Tilt)

• Mix-n-Match Cable (connector type varies by variant)

Available Variants (All $1,479.00 each):
