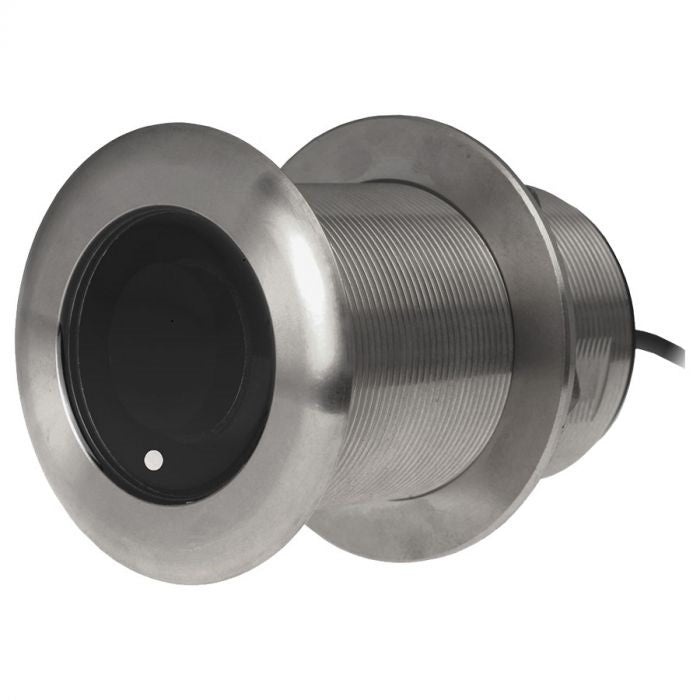

Airmar SS175C-0-MW 0° Tilt Medium CHIRP Transducer with Mix-n-Match Plug

Take your sonar performance to the next level with the Airmar SS175C-0-MW, a CHIRP-ready transducer engineered for maximum coverage and incredible detail. Designed with Airmar’s advanced Tilted Element™ technology, this 0° tilt model is optimized for hull deadrise angles from 0° to 7°, delivering powerful, high-resolution sonar images even at speed.

The SS175MW uses medium-frequency CHIRP (60–100 kHz) and features an ultra-wide beam (57°–73° port/starboard, 16° average fore/aft), making it perfect for targeting pelagic species in the upper water column. Whether you're chasing tuna, swordfish, or structure-hugging gamefish, this transducer delivers unmatched clarity and detail.

Key Features:

• CHIRP-ready with 40 kHz of bandwidth (60–100 kHz)

• 1kW power rating with depth tracking to 1300 ft (400 m)

• Ultra-wide beam for maximum coverage under the boat

• Exclusive Xducer ID® technology for fast setup

• Stainless steel, low-profile thru-hull housing

• For boats up to 36' (11 m)

Specifications:

• Mounting Style: Tilted Element Thru-Hull

• Tilt: 0°

• Beamwidth: 57°–73° (Port/Starboard) x 16° average (Fore/Aft)

• Max Depth: 1300 ft (400 m)

• Cable Length: 30 ft (9 m)

• Hole Size: 95 mm (3-3/4")

• Housing: Stainless Steel

• Weight: 6 lb (2.7 kg)

• Frequency: Medium CHIRP (60–100 kHz)

• Functions: Depth & Temperature

What's in the Box:

• SS175C-0-MW 0° Tilted Element CHIRP Transducer

• Mix & Match connector cable (see variant options)

Variants:
