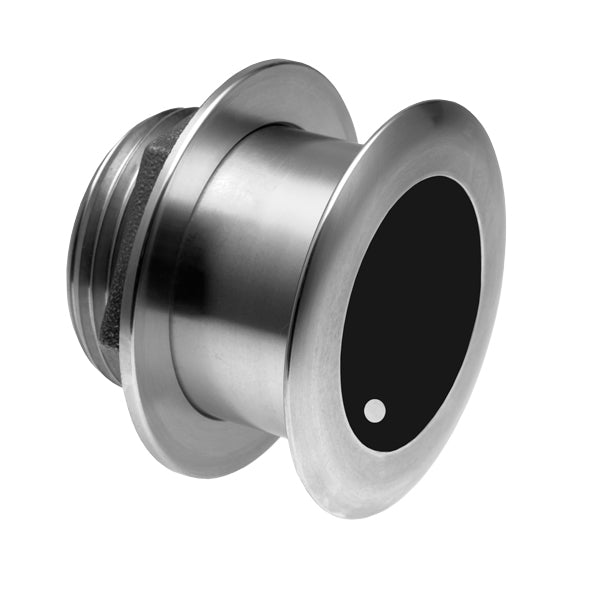

Airmar SS175C-12-HW 12° Tilt High Wide CHIRP Transducer with Mix-N-Match Plug

Product Description

Model: SS175C-12-HW
Connector Variants Available:

• Bare Wire (AIRSS175C12HW0)

• Garmin 8-Pin (AIRSS175C12HW8G)

• Garmin 12-Pin (AIRSS175C12HW12G)

• Humminbird 9-Pin (AIRSS175C12HWHB)

• Humminbird 21-Pin (AIRSS175C12HWH21)

• Navico 9-Pin (AIRSS175C12HW9N)

• Navico BL (AIRSS175C12HWBL)

• Raymarine 11-Pin (AIRSS175C12HW11R)

• Si-Tex 8-Pin (AIRSS175C12HWBB)

---

High Wide CHIRP Performance. Compact Thru-Hull Design.

Get more coverage under the boat with Airmar's SS175C-12-HW 12° Tilt transducer. This high frequency, wide beam CHIRP model operates from 150 kHz to 250 kHz with a consistent 25° beamwidth—providing twice the coverage of standard CHIRP transducers. With 100 kHz of total bandwidth, this transducer excels at distinguishing fish and structure with exceptional detail in depths up to 500'.

Perfect for boats 25’ and up, the stainless steel housing installs flush to the hull, and the tilted ceramic element corrects for hull deadrise to ensure accurate sonar returns. Whether you're targeting pelagic species or scanning inshore waters, this high wide CHIRP model is your upgrade for full coverage clarity.

Key Features:

• Depth and fast-response water-temperature sensor

• 1 kW output

• Frequency range: 150 kHz to 250 kHz

• Constant 25° beamwidth for full water column visibility

• Excellent resolution and target separation, even in shallow water

• Stainless steel housing for fiberglass, wood, or metal hulls

• Compatible with Mix-N-Match cables for popular fishfinder brands

• Exclusive Xducer ID® technology

Recommended For:

• Stepped, planing, or displacement hulls

• Boats up to 36 ft.

• Anglers demanding wide coverage and detail down to 500’

Specifications:

• Weight: 2.7 kg (6 lb)

• Hull Deadrise: 8° to 15°

• Acoustic Window: Urethane

• Hole Size: 98 mm (3-7/8")

• One internal ceramic assembly

---
