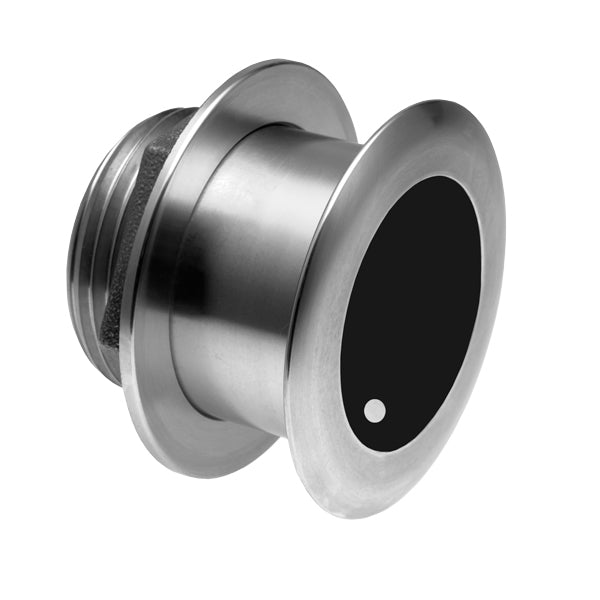

Airmar SS175C-12-L 12° Tilt Low CHIRP Transducer with Mix-N-Match Plug

Description:
Model: SS175C-12-L
Includes the following variants:

• AIRSS175C12LMM – No Connector (Bare Wire)

• AIRSS175C12L12G – Garmin 12-Pin

• AIRSS175C12L14HB – Humminbird 14-Pin

• AIRSS175C12L9HB – Humminbird 9-Pin

• AIRSS175C12LN9 – Navico 9-Pin

• AIRSS175C12L11R – Raymarine 11-Pin

• AIRSS175C12LSI8 – Si-Tex 8-Pin

Airmar SS175C-12-L Low CHIRP Transducer – 12° Tilt

Designed for smaller vessels, the Airmar SS175C-12-L is a powerful 1 kW transducer built for deep-water performance. With a low-frequency CHIRP range of 40 kHz to 75 kHz and a beamwidth of 32° to 21°, this tilted element model offers outstanding depth detection and fish target separation.

Its stainless steel housing and low-profile design ensure reliable operation at speed, and the 12° internal tilt is ideal for hulls with an 8° to 15° deadrise. Compatible with a wide range of marine electronics via Mix-N-Match connectors.

Key Features:

• Depth & fast-response water-temperature sensor

• Low CHIRP: 40 kHz to 75 kHz with 32° to 21° beamwidth

• 35 kHz of total bandwidth from a single installation

• Stainless steel housing for use on fiberglass, wood, or metal hulls

• Ideal for boats up to 11 m (36’)

• Xducer ID® technology for automatic transducer recognition

Specifications:

• Power: 1 kW

• Max Depth: 2500 ft (762 m)

• Weight: 2.7 kg (6 lb)

• Hull Deadrise: 8° to 15°

• Acoustic Window: Urethane

• Hole Size: 98 mm (3-7/8”)

• Seven internal broadband ceramic assemblies
