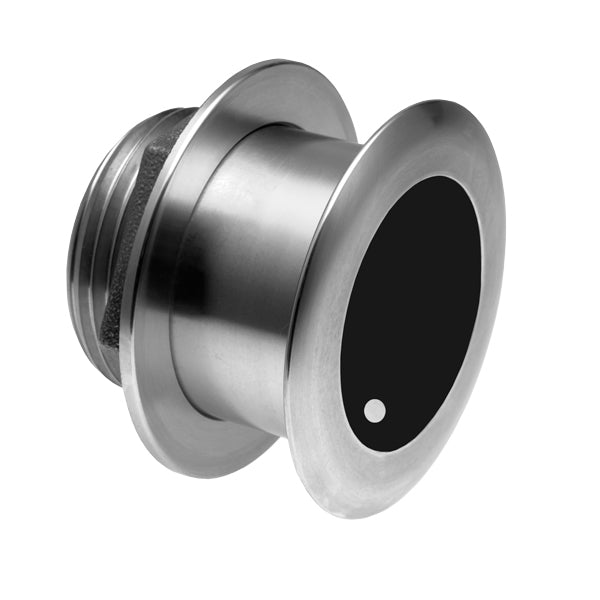

Airmar SS175C-12-M 12° Tilt Medium CHIRP Transducer with Mix-N-Match Plug

Model: SS175C-12-M
Connector Options Available:

• Garmin 12-Pin (AIRSS175C12M12G)

• Garmin 8-Pin (AIRSS175C12M8G)

• Humminbird 14-Pin (AIRSS175C12M14HB)

• Humminbird 21-Pin (AIRSS175C12M21HB)

• Humminbird 9-Pin (AIRSS175C12MHB)

• Navico 9-Pin (AIRSS175C12M9N)

• Navico Blue (AIRSS175C12MBL)

• Raymarine 11-Pin (AIRSS175C12M11R)

• Si-Tex 8-Pin (AIRSS175C12MBB)

• Bare Wire / No Connector (AIRSS175C12M0)

Built for precision and performance, the Airmar SS175C-12-M Medium CHIRP transducer offers exceptional clarity and fish-target resolution in medium-depth waters.

With a CHIRP frequency range of 85 kHz to 135 kHz and a 12° tilt built-in, it’s optimized for hulls with an 8°–15° deadrise. This 1 kW transducer is ideal for center consoles, fishing boats, and vessels up to 36 ft, offering clean target returns down to 1,500 feet. It features a stainless steel low-profile housing and is compatible with most marine electronics using Mix-N-Match cables.

Key Features:

• CHIRPS from 85–135 kHz with 16° to 11° beamwidth

• 50 kHz of total bandwidth from one transducer

• Depth and fast-response water-temperature sensor

• Excellent performance from shallow to mid-depth water

• Stainless steel housing for all hull materials

• Recommended for boats up to 11 m (36')

• Exclusive Xducer ID® technology

• Compatible with Garmin, Humminbird, Navico, Raymarine, Si-Tex, and more

Specifications:

• Power: 1 kW

• Max Depth: 457 m (1500')

• Weight: 2.7 kg (6 lb)

• Acoustic Window: Urethane

• Hole Size: 98 mm (3-7/8”)

• Hull Deadrise: 8° to 15°

• Mount: Thru-hull, low-profile

• Element: One internal ceramic assembly
