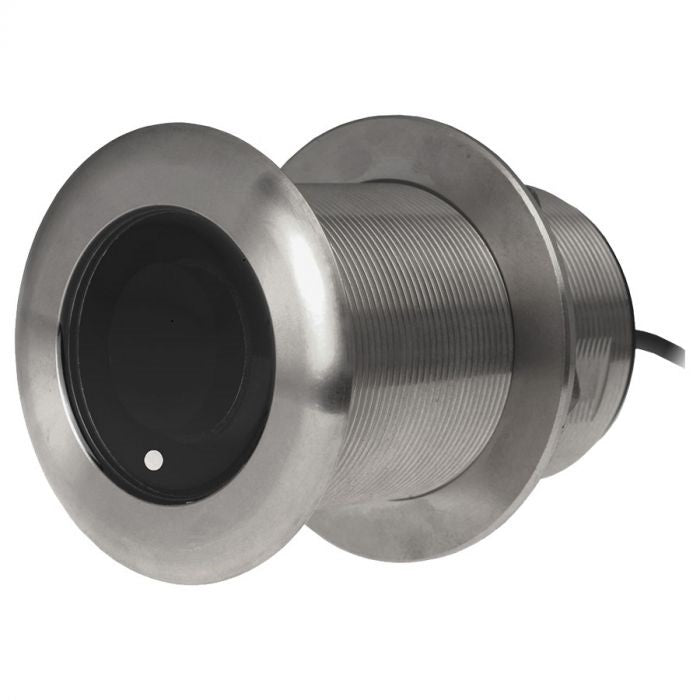

Airmar SS175C-12-MW 12° Tilt Medium CHIRP Ultra Wide Thru-Hull Transducer with Mix-n-Match Connector

Airmar SS175C-12-MW 12° Tilt Medium CHIRP Ultra Wide Thru-Hull Transducer with Mix-n-Match Connector

Description:
The Airmar SS175C-12-MW is a powerhouse CHIRP-ready thru-hull transducer designed for anglers targeting pelagic species with precision and wide coverage. Featuring a 12° tilted element optimized for hulls with 8° to 15° deadrise, this 1kW medium-frequency model (60–100 kHz) delivers an ultra-wide beam (57°–73° port/starboard and 16° fore/aft) for unparalleled target separation and bottom tracking to 1,300 feet.

Perfect for trailered boats up to 36' with solid fiberglass hulls, the SS175C-12-MW provides a clean, flush-mount installation, reducing drag and risk of impact damage. Its CHIRP technology unlocks 40 kHz of bandwidth, giving sport fishermen unmatched sonar clarity across mid-depth ranges.

Key Features:

• 12° Tilted Element for 8°–15° hull deadrise

• Medium CHIRP frequency range: 60–100 kHz

• 1kW power output with depth tracking up to 1,300 ft (400 m)

• Ultra-wide beam: 57°–73° (port/starboard) x 16° (fore/aft)

• Depth and fast-response temperature sensor

• Urethane acoustic window, stainless steel housing

• Exclusive Xducer ID® technology for smart sonar integration

• Flush-mount tilted element design improves high-speed performance

What's in the Box

• SS175C-12-MW-MM Medium CHIRP 12° Tilted Element Transducer

• Connector-specific Mix-N-Match MMC cable (see variants below)

Variants

Note: The Bare Wire variant is currently only compatible with the Garmin GSD28 as of 05/29/2024.
