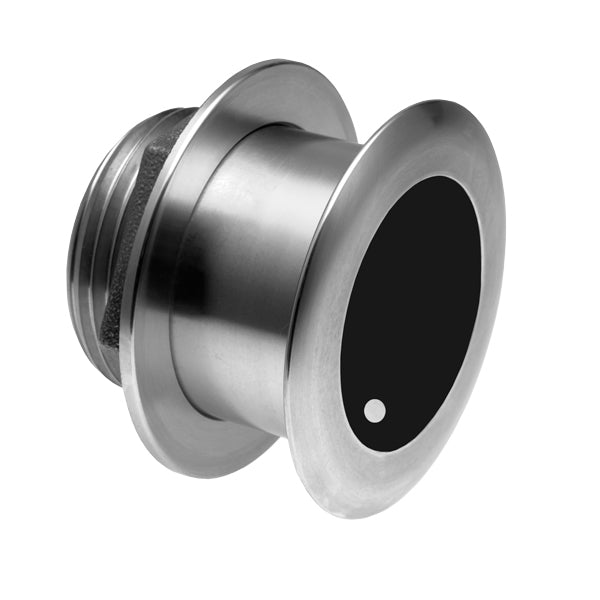

Airmar SS175C-20-H 20° Tilt High CHIRP Transducer with Mix-N-Match Plug

The Airmar SS175C-20-H delivers exceptional shallow-water performance with High CHIRP capabilities. Designed for steel or aluminum hulls, this tilted element transducer provides superior target resolution and bottom detail from 130 kHz to 210 kHz. With a 20° fixed tilt for hull deadrise between 16° and 24°, the ceramic element is positioned for optimal echo returns even at speed.

Whether you're chasing game fish or scanning structure, this 1 kW stainless steel transducer is your key to clearer, more detailed sonar images. It features fast-response temperature sensing and Airmar’s exclusive Xducer ID® technology for plug-and-play convenience with compatible systems.

Key Features:

• CHIRPS from 130 kHz to 210 kHz

• 15° to 9° beamwidth

• 1 kW power rating

• Max depth: 304 m (1000')

• Steel housing

• Ideal for boats up to 11 m (36’)

• Urethane acoustic window

• Exclusive Xducer ID® technology

• Hole size: 98 mm (3-7/8")

• Weight: 2.7 kg (6 lb)

• Recommended hull deadrise: 16° to 24°
