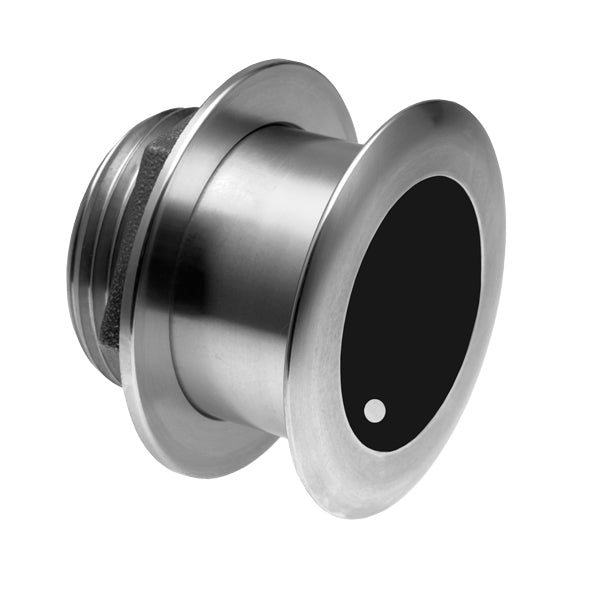

Airmar SS175C-20-HW 20° Tilt High Wide CHIRP Transducer with Mix-N-Match Plug

Model: SS175C-20-HW
Upgrade your sonar capabilities with the Airmar SS175C-20-HW, a CHIRP-ready, 1 kW thru-hull transducer built for precision, detail, and coverage. With a high-frequency CHIRP range of 150–250 kHz and a fixed 25° beamwidth, this unit provides superior shallow-water performance and unrivaled coverage under the boat.

Perfect for both inshore and offshore fishing, the SS175C-20-HW enables accurate target separation, crisp imaging, and outstanding resolution—all while maintaining a low-profile stainless steel housing designed for vessels with a hull deadrise of 16° to 24°.

Whether you fish for a living or chase tournaments, Airmar’s high-wide beam delivers the reliability and clarity professionals demand.

Key Features:

• CHIRPs from 150 kHz to 250 kHz with constant 25° beamwidth

• Max depth: 152 m (500')

• Covers popular 200 kHz range and beyond

• High-performance stainless steel housing

• Exclusive Xducer ID® technology

• Designed for boats up to 11 m (36’)

• Flush-mounted with 20° internal tilt for optimal performance

Specifications:

• Weight: 2.7 kg (6 lb)

• Acoustic Window: Urethane

• Hull Deadrise: 16° to 24°

• Hole Size: 98 mm (3-7/8")

• One internal ceramic assembly

Connector Options (Model Numbers):

• Bare Wire – AIRSS175C20HW0

• Garmin 8-Pin – AIRSS175C20HW8G

• Garmin 12-Pin – AIRSS175C20HW12G

• Humminbird 9-Pin – AIRSS175C20HWHB

• Humminbird 14-Pin – AIRSS175C20HW14HB

• Humminbird 21-Pin – AIRSS175C20HW21HB

• Navico 9-Pin – AIRSS175C20HW9N

• Navico Blue 7-Pin – AIRSS175C20HWBL

• Raymarine 11-Pin – AIRSS175C20HW11R

• Si-Tex 8-Pin – AIRSS175C20HWBB
