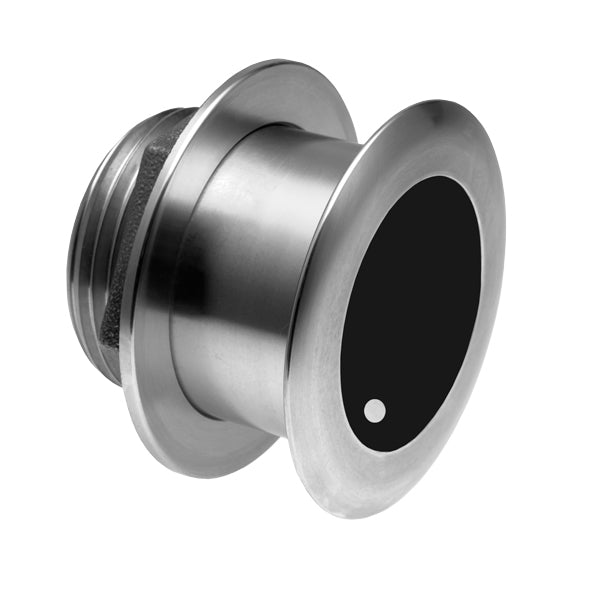

Airmar SS175C-20-M 20° Tilt Medium CHIRP Transducer with Mix-N-Match Plug

The Airmar SS175C-20-M delivers powerful 1kW Medium CHIRP performance with a 20° tilted element, ideal for hulls with deadrise angles from 16° to 24°. With a frequency range of 85–135 kHz and beamwidths from 16° to 11°, this stainless-steel transducer offers excellent target resolution and fish separation down to 1500 feet.

Designed for boats up to 36 feet and compatible with a wide range of systems via Mix-N-Match connectors, the SS175C-20-M installs nearly flush with the hull. Its tilt aligns the ceramic element horizontally for optimal echo return, delivering high-performance sonar without drag—perfect for tournament anglers, charter captains, and serious offshore fishermen.

Key Features:

• Depth & fast-response water-temperature sensor

• 1kW CHIRP — Medium frequency (85–135 kHz)

• Beamwidth: 16° to 11°

• Maximum depth: 1500 ft (457 m)

• Stainless steel housing for fiberglass, metal, and wood hulls

• Urethane acoustic window

• Hole Size: 98 mm (3-7/8")

• One internal ceramic assembly

• Recommended boat size: Up to 11 m (36’)

• Exclusive Xducer ID® technology
