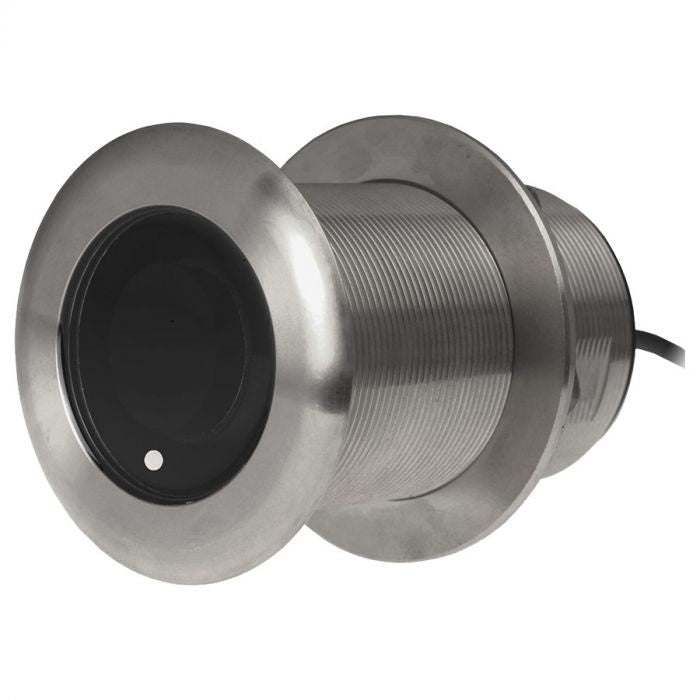

Airmar SS175C-20-MW 20° Tilt Medium Wide CHIRP Ultra Wide Transducer with Mix-N-Match Plug

Model: SS175C-20-MW

Built for serious offshore anglers and commercial applications, the Airmar SS175C-20-MW delivers powerful CHIRP performance in a sleek, low-profile stainless steel housing. With a 20° tilted element, this through-hull transducer is designed for hulls with a 16° to 24° deadrise, ensuring optimal signal return and echo accuracy.

This Ultra Wide CHIRP model operates in the 85–135 kHz frequency range with an ultra-wide beamwidth of 32° to 21°, making it ideal for scanning large areas and detecting fish targets at medium depths. It includes a built-in fast-response temperature sensor and supports Airmar’s Xducer ID® technology for plug-and-play performance.

Whether you’re equipping a center console, sportfishing boat, or commercial vessel, the SS175C-20-MW offers reliable bottom tracking and fish detection—without sacrificing speed, efficiency, or accuracy.

Key Features

• Medium CHIRP frequency: 85–135 kHz

• Ultra Wide beam: 32° to 21°

• Power: 1 kW

• Depth Range: Up to 1,500' (457 m)

• Internal temperature sensor

• Stainless steel housing – ideal for metal and fiberglass hulls

• Tilted element (20°) corrects for deadrise

• CHIRP-ready with up to 50 kHz of bandwidth

• Flush-mounted for minimal drag

• Compatible with multiple systems via Mix-N-Match connectors
