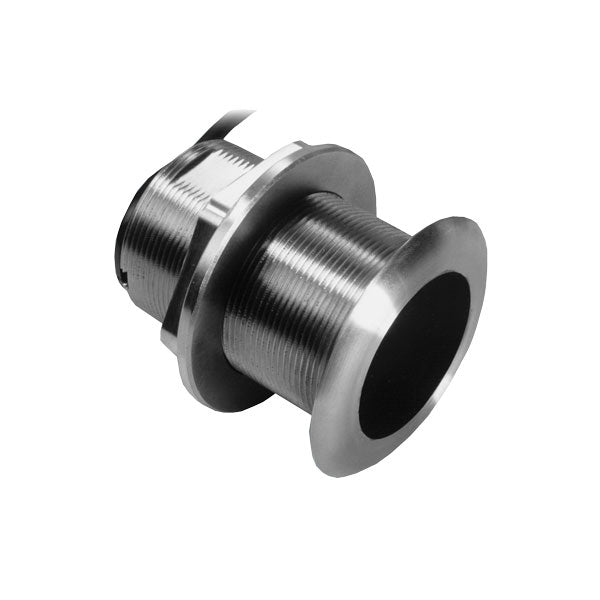

Airmar SS60-12-8G 50/200Khz 12d Tilted Element 8-Pin garmin Connector
Couldn't load pickup availability
Description
Description
Product Description
The Airmar SS60-12-8G is a 600W dual-frequency (50/200 kHz) stainless steel thru-hull transducer with a 12° tilted element and 8-pin Garmin connector, designed for accurate depth and temperature sensing on boats with 8°-15° hull deadrise.
Product Overview
This low-profile tilted element model ensures maximum echo returns by correcting for hull deadrise, delivering reliable performance for fishing, navigation, and trailered boats up to 26 ft without impacting boat speed.
Key Specifications
-
Frequencies: 50 kHz (45° beam, 1200 ft max depth); 200 kHz (12° beam, 700 ft max depth)
-
Hole size: 60 mm (fiberglass/wood) or 70 mm (metal); weight 1.4 kg (3 lb); 10 m cable
-
Urethane acoustic window; compatible with Garmin GSD 24 and 'xs' series units
What's in the Box
-
SS60-12-8G transducer with Garmin 8-pin connector
-
Rubber washer, isolation bushing, installation hardware
-
Owner's guide and foul release insert card
Have a question?
Notified by email when this product becomes available
$499.99
