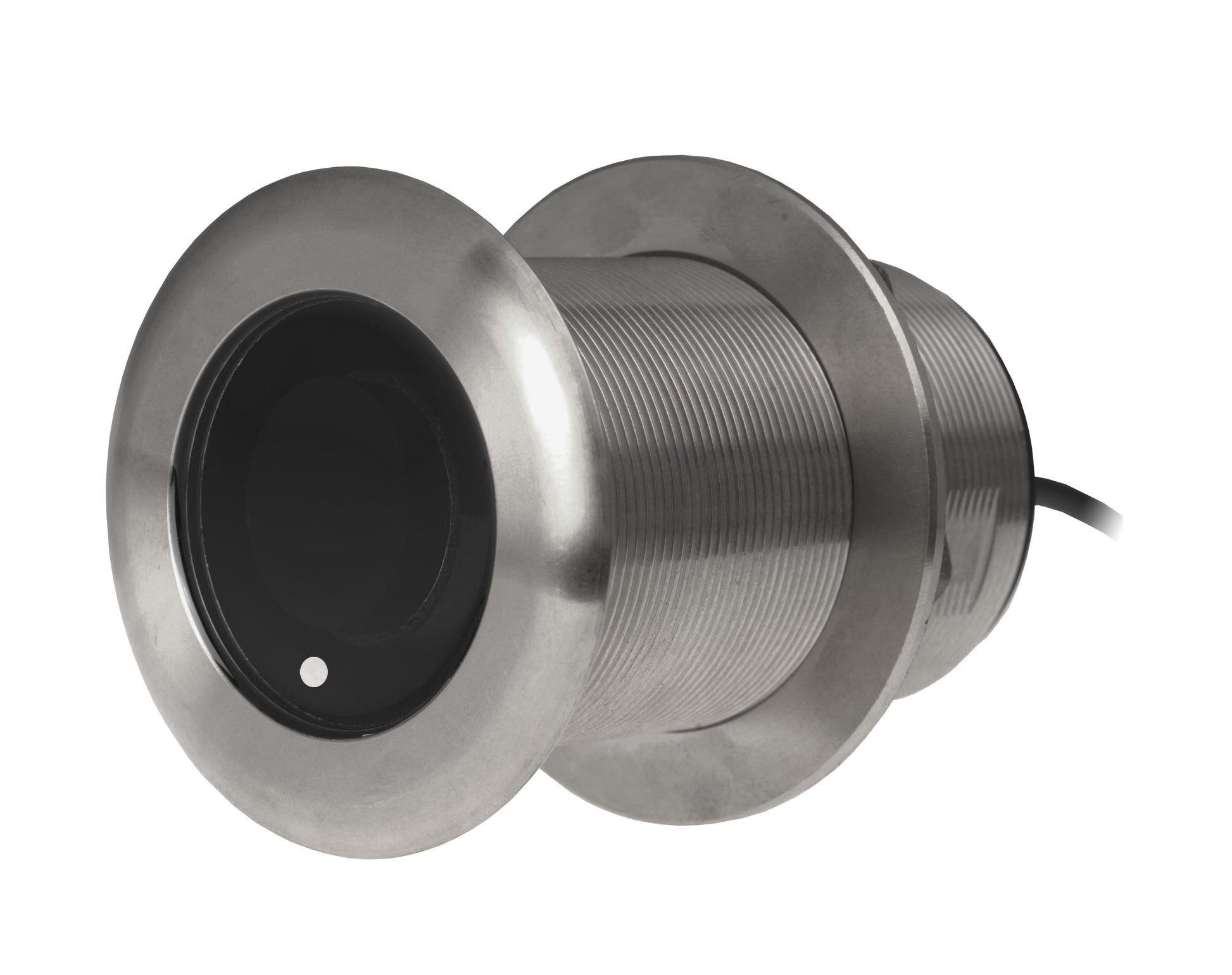

Airmar SS75C -H Tilted Element High CHIRP With Mix-N-Match Plug Series.

Airmar SS75C High CHIRP Tilted Element Thru-Hull Transducer Series

The Airmar SS75C series are high frequency 600 W CHIRP transducers designed for precise fish and bottom detection on smaller boats up to 25 ft (8 m). These tilted element models correct for hull deadrise by orienting the ceramic element horizontally to maximize echo returns, offering superior detail and target resolution. Operating over the 130 to 210 kHz frequency band with up to 80 kHz bandwidth, they deliver 5 to 10 times greater detail than traditional narrowband transducers and can detect bottom depths up to 3,000 m (10,000 ft).

Constructed with robust stainless steel housings and urethane acoustic windows, the SS75C models are built for durability and compatibility with all hull types including fiberglass, wood, or metal.

Models Available

• SS75C-0-H (0° Tilt)

• SS75C-12-H (12° Tilt)

• SS75C-20-H (20° Tilt)

Key Features

• High-frequency CHIRP band: 130 – 210 kHz

• 600 W power output

• Tilted Element™ design corrects hull deadrise for optimal echo returns

• Thru-hull stainless steel construction for all hull materials

• Printable with all common CHIRP-compatible sonar systems

• Urethane acoustic window for durability

• Maximum hull deadrise up to 28°

• Depth and fast-response water-temperature sensing

• Bandwidth of up to 80 kHz for superior target definition

• Designed for boats up to 25 ft (8 m)

Model Comparison

What’s in the Box

• SS75C series transducer (model specific: 0°, 12°, or 20° tilt)

• Stainless steel thru-hull housing

• Urethane acoustic window
