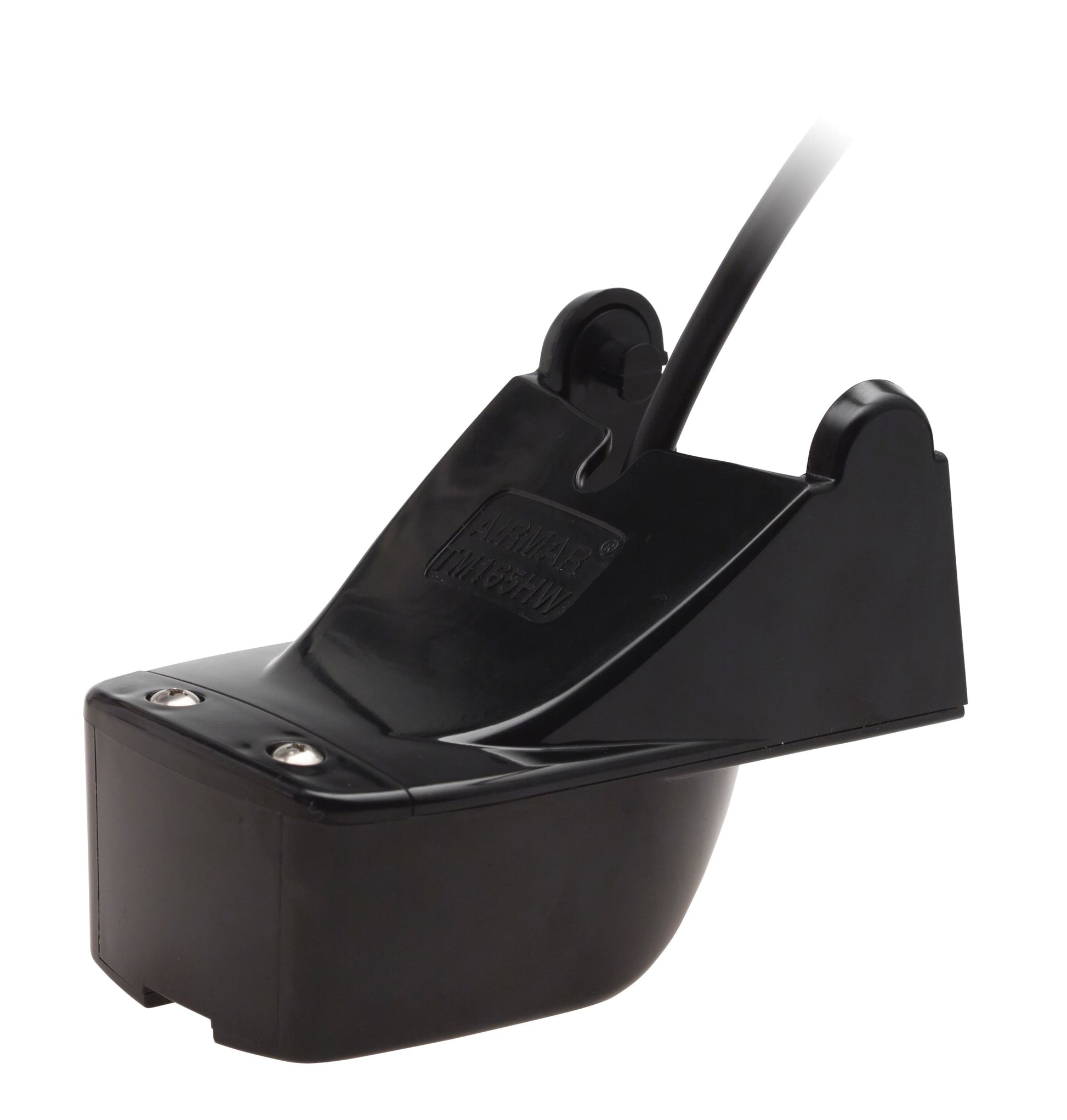

Airmar TM165C-HW Transducer High Wide CHIRP With Garmin.

Airmar TM165C-HW High Wide CHIRP Transom Mount Transducer Series for Garmin

The Airmar TM165C-HW transducer delivers excellent wide-beam CHIRP performance for anglers seeking extensive coverage and superior fish detection in shallow to mid-depth waters. Operating across a high-frequency range of 150 to 250 kHz with 600 W power output, it features a super-wide 30° average beamwidth that provides up to three times the under-boat coverage compared to narrow-beam transducers, producing crisper and larger return images on display.

Built with a durable layered plastic urethane (LPU) acoustic window and a plastic transom bracket, this lightweight 0.5 kg (1.1 lb) transducer is designed for planing hulls up to 8 m (25 ft) made from fiberglass, wood, or metal. It supports transom tilt angles from 2° to 22° and includes a fast-response water temperature sensor. The integrated exclusive Xducer ID® technology enables automatic setup and optimal performance with compatible CHIRP-capable fishfinders, including Lowrance HDS Live/HDS Carbon, Humminbird Helix, Raymarine Axiom Pro, and Simrad EVO 3 sonar units.

Models:

• TM165C-HW-8G (Garmin 8-Pin Mix-N-Match Cable)

• TM165C-HW-12G (Garmin 12-Pin Mix-N-Match Cable)

Key Features

• High-frequency range: 150 to 250 kHz

• Super-wide constant 30° beamwidth across the frequency band

• Power output: 600 W

• Maximum depth: 152 m (500 ft)

• Layered Plastic Urethane (LPU) acoustic window for durability

• Lightweight design (0.5 kg / 1.1 lb) with low-profile form factor

• Compatible with planing hulls up to 8 m (25 ft)

• Fits transom angles between 2° and 22°

• Includes a fast-response water temperature sensor

• Equipped with Xducer ID® technology for automatic sonar setup

Model Comparison

What’s in the Box

TM165C-HW-8G

• TM165C-HW transducer assembly (TM165C-HW-MM)

• MMC-8G Garmin 8-Pin Mix-N-Match cable

• Plastic transom mounting bracket and hardware

TM165C-HW-12G

• TM165C-HW transducer assembly (TM165C-HW-MM)

• MMC-12G Garmin 12-Pin Mix-N-Match cable

• Plastic transom mounting bracket and hardware
