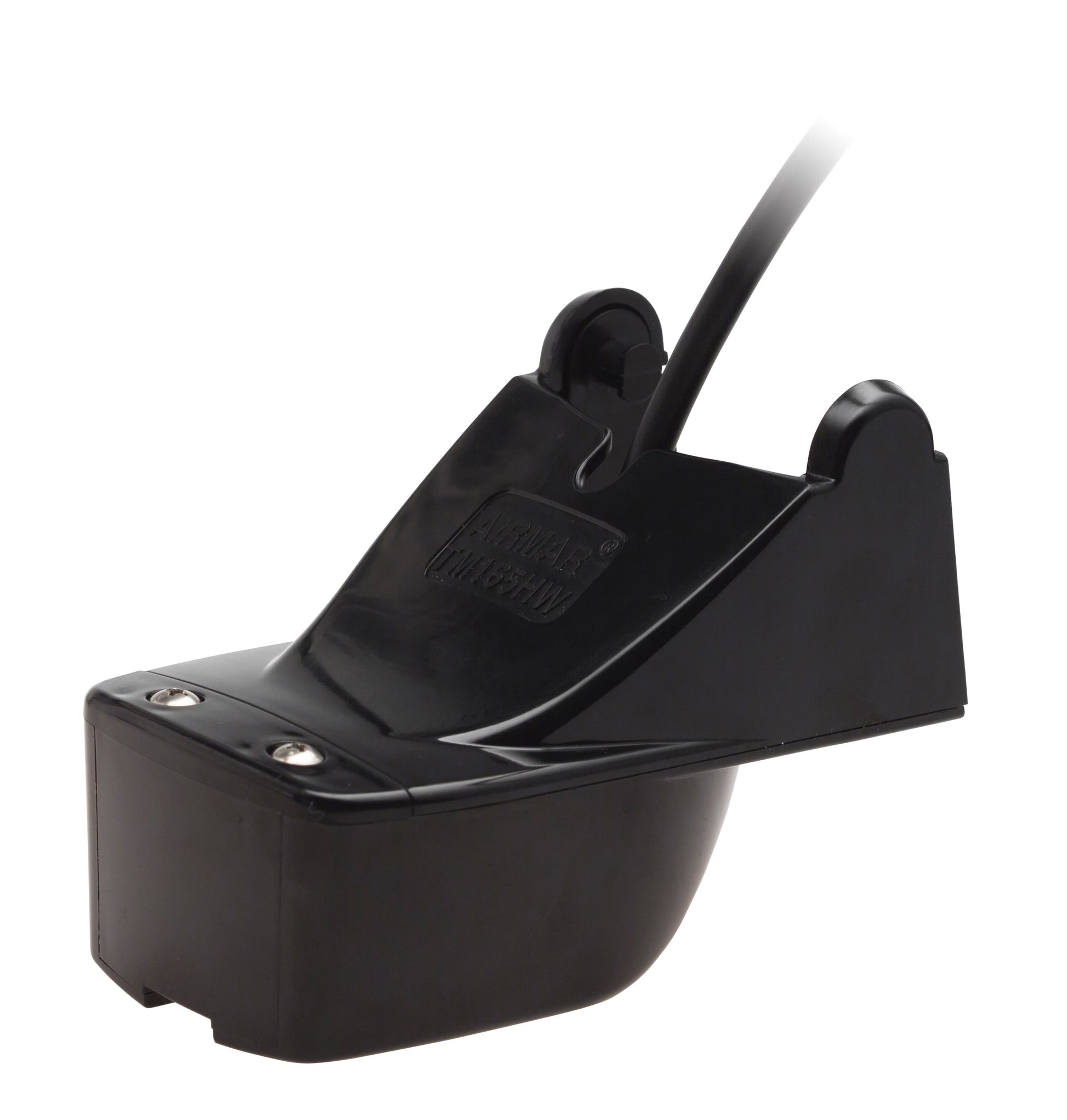

Airmar TM165C‑HW High Wide CHIRP  Transducer Series for Humminbird.

Airmar TM165C‑HW High Wide CHIRP Transom Mount Transducer Series for Humminbird

The Airmar TM165C‑HW transducer provides exceptional wide‑beam CHIRP performance for inshore and shallow water anglers. Operating within a 150–250 kHz frequency range at 600 W, it delivers three times more under‑boat coverage than standard narrow‑beam transducers while offering crisply defined target separation and superior bottom detail.

Its super‑wide 30° average beamwidth ensures excellent fish detection in the upper water column and broad bottom coverage at speed. Lightweight and rugged, the TM165HW features a plastic transom bracket suited for planing hulls of fiberglass, metal, or wood up to 8 m (25 ft). Each version includes the fast‑response temperature sensor and Airmar’s Xducer ID® for automatic recognition on compatible Humminbird CHIRP sounders.

Models :

• TM165C‑HW‑9HB (Humminbird 9‑Pin Mix‑N‑Match Cable)

• TM165C‑HW‑14HB (Humminbird 14‑Pin Mix‑N‑Match Cable)

• TM165C‑HW‑21HB (Humminbird 21‑Pin Mix‑N‑Match Cable)

Key Features

• High frequency range: 150 – 250 kHz (CHIRP‑ready)

• Super‑wide 30° average beamwidth for maximum coverage

• Power output: 600 W

• Maximum depth: 152 m (500 ft) or 106 m (350 ft) on TM165C‑HW‑21HB

• Depth and fast‑response temperature sensing

• Plastic housing with impact‑resistant release bracket

• Lightweight design for planing hulls up to 8 m (25 ft)

• Transom fit angles: 2° – 22°, deadrise to 30°

• Acoustic window: Layered Plastic Urethane (LPU)

• Cable length: 9 m (29 – 30 ft)

• Xducer ID® for auto calibration on CHIRP sounders

• Compatible with Humminbird HELIX, SOLIX, and APEX series

Model Comparison

Technical Highlights

• Wide beam coverage creates larger and more defined returns on fishfinder displays

• Operates optimally with modern CHIRP equipment for shallow‑water clarity and surface tracking

• Low‑drag profile maintains high speed performance

• Recommended for fiberglass, metal, or wood planing hulls

• Cable length sufficient for stern‑to‑sounder routing

What’s in the Box

TM165C‑HW‑9HB

• TM165C‑HW Transducer (TM165C‑HW‑MM)

• MMC‑HB (Humminbird 9‑Pin Mix‑N‑Match Cable)

• Plastic transom mount bracket and hardware

TM165C‑HW‑14HB

• TM165C‑HW Transducer (TM165C‑HW‑MM)

• MMC‑14HB (Humminbird 14‑Pin Mix‑N‑Match Cable)

• Plastic transom mount bracket and hardware

TM165C‑HW‑21HB

• TM165C‑HW Transducer with Humminbird 21‑Pin connector

• Plastic transom bracket and mounting kit

• Approximately 9 m (30 ft) cable

• Adapter if required for specific Humminbird display
