Vendor: Airmar
Sku: AIRTM185CHW0

Airmar Transom‑Mount CHIRP Transducer Series (Bare Wire Mix‑N‑Match Models).

$1,549.99
$1,499.00 $1,549.99
Sold out
Shipping calculated at checkout.
Low stock: 3 left
Model: TM185C‑M‑0

Description

Caret Down

Airmar Transom‑Mount CHIRP Transducer Series (Bare Wire Mix‑N‑Match Models)

The Airmar TM‑Series transducers deliver outstanding CHIRP performance for every fishing depth using direct bare‑wire configurations for universal integration with compatible sounders. Designed for transom mounting, these 1 kW broadband units combine Airmar’s advanced ceramic arrays, fast‑response temperature sensors, and Xducer ID® technology to ensure precise sonar data and consistent target definition.

Constructed with a urethane housing and stainless steel bracket, each model offers reliable performance in both planing and displacement hulls.

Models Available

  • TM185C‑M‑0 (Medium CHIRP)

  • TM185C‑HW‑0 (High Wide CHIRP)

  • TM265C‑LH‑0 (Low/High CHIRP)

  • TM275C‑LHW‑0 (Low/High Wide CHIRP)

Key Features

  • CHIRP coverage from 42 to 250 kHz depending on model

  • 1 kW broadband power for rich target detail and depth penetration

  • Depth and fast‑response temperature sensor built in

  • Xducer ID® auto‑configuration technology

  • Durable urethane acoustic window and stainless mounting bracket

  • Transom angle fit between 3° and 28°

  • Compatible with fiberglass, wood, and metal hulls

  • Bare wire Mix‑N‑Match connection for custom ECHOSOUNDER wiring

Model Comparison

Model Frequency Range (kHz) Beamwidth (°) Max Depth (m / ft) Power Application Acoustic Window
TM185C‑M‑0 85 – 135 16 – 11 approx. 457 / 1,500 1 kW Mid‑depth offshore and freshwater Urethane
TM185C‑HW‑0 150 – 250 25 constant 152 / 500 1 kW Inshore and pelagic wide coverage Urethane
TM265C‑LH‑0 Low 42–65 / High 130–210 Low 25–16 / High 10–6 1,200+ / 4,000+ 1 kW Deep‑water and offshore Urethane
TM275C‑LHW‑0 Low 42–65 / High 150–250 Low 25–16 / High 25 constant 900 / 3,000 1 kW Broad‑band dual CHIRP coverage Urethane


Technical Highlights

  • TM185C‑M‑0: Ideal for balanced coverage and strong mid‑depth returns

  • TM185C‑HW‑0: Constant 25° beamwidth for wider fish detection and superior resolution

  • TM265C‑LH‑0: Low/High frequencies for deep bottom imaging and structure detail

  • TM275C‑LHW‑0: Extended bandwidth for wide‑beam imaging and enhanced CHIRP response

What’s in the Box

TM185C‑M‑0

  • TM185C‑M Transducer (TM185C‑M‑MM)

  • MMC‑0 Bare Wire Cable

TM185C‑HW‑0

  • TM185C‑HW Transducer (TM185C‑HW‑MM)

  • MMC‑0 Bare Wire Cable

TM265C‑LH‑0

  • TM265CLH Transducer Assembly (TM265CLH‑MM)

  • Transom Mount Hardware

  • MMC‑0 Bare Wire Cable

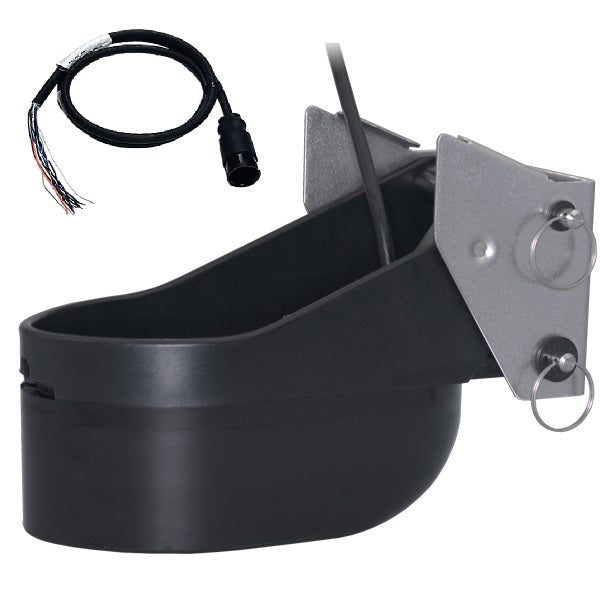

TM275C‑LHW‑0

  • TM275C‑LHW Transducer Assembly (TM‑275C LHW)

  • Transom Mount Bracket and Hardware

  • Three 3° Shims

  • MMC‑0 Bare Wire Cable
