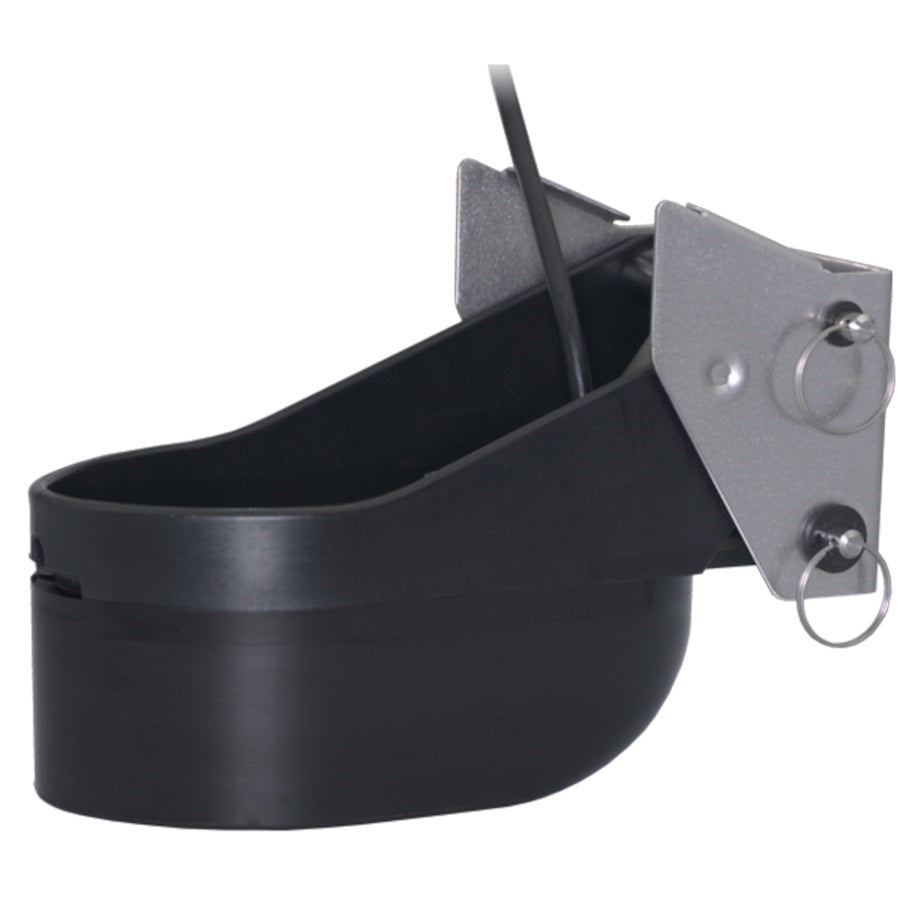

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Garmin MMC Cable.

Airmar TM185MW Medium Ultra-Wide CHIRP-Ready Transom Mount Transducers with Garmin MMC Cables

Product Description

The Airmar TM185MW Medium Ultra-Wide (MW) CHIRP-ready transom mount transducers deliver superior mid-depth performance with excellent fish-target separation. Operating in the medium frequency range of 60-100 kHz, these transducers feature an ultra-wide beamwidth spanning 57° to 73° port to starboard and 16° average fore/aft. The TM185MW provides 1 kW power and depth tracking capability down to 400 meters (1,300 feet), making it ideal for small and trailered vessels where thru-hull installation is impractical.

Housed in a durable urethane body with a stainless steel transom bracket, the TM185MW offers a simple installation and easy maintenance. It incorporates proprietary Xducer ID® technology for seamless integration and identification within sonar systems. The transducers come with Garmin Multi-Mount Cables (MMC) designed for compatibility with various Garmin heads, available with either an 8-pin or 12-pin connector for flexible system configurations.

Model Numbers

Key Features

• Medium frequency range: 60-100 kHz (CHIRP-ready)

• Power: 1 kW

• Maximum depth: 400 m (1,300 ft)

• Beamwidth: 57° to 73° (port/starboard), 16° average (fore/aft)

• Depth and fast-response water-temperature sensor

• Urethane housing with stainless steel transom bracket

• 9 m (30 ft) cable length

• Exclusive Airmar Xducer ID® technology for plug-and-play operation

• Designed for simple transom mounting on small or trailered vessels

• Effective performance at boat speeds under 30 knots

• Low-cost maintenance and replacement

Specifications
