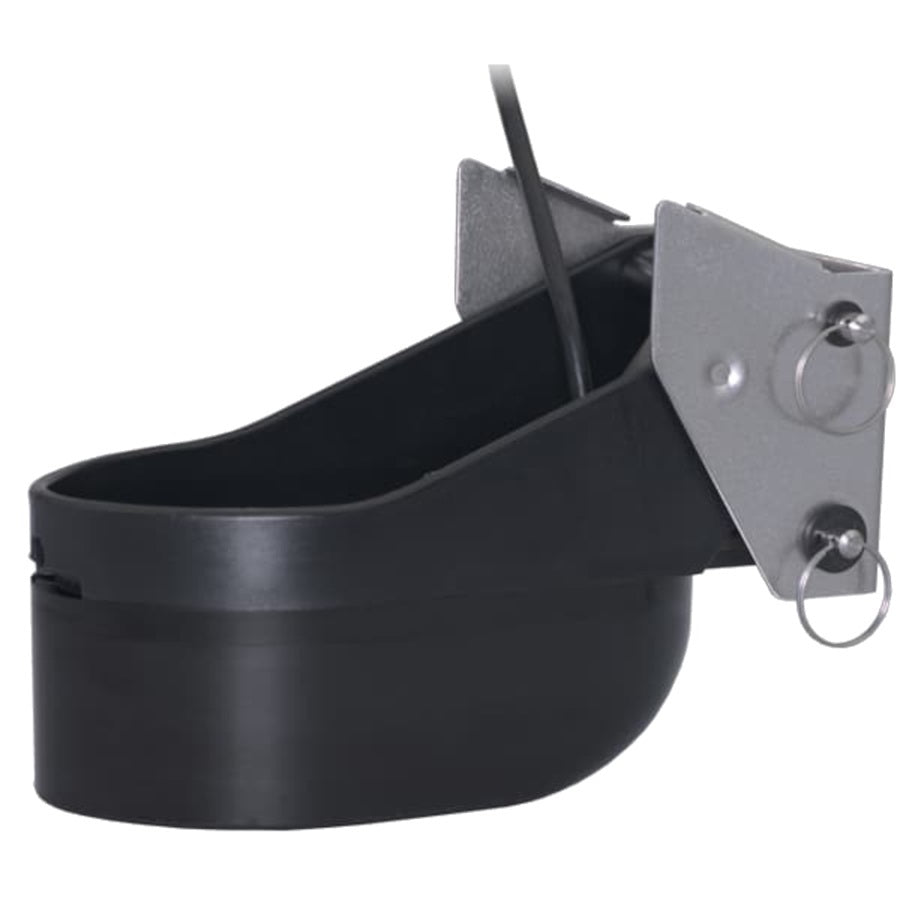

AIRMAR TM265C-LM 1kW Low Medium CHIRP Navico MMC - Y-Cable.

$2,287.91

~~$2,099.00~~ $2,287.91

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Connector Type: 7 Pin 7 Pin 9 Pin

Description

Airmar TM265C Low-Medium CHIRP Transom Mount Transducers with Navico Mix-N-Match Cables

Product Description

The Airmar TM265C Low-Medium (LM) CHIRP transom mount transducers provide 1 kW of sonar power ideal for deep to mid-depth fishfinding performance. These transducers operate with low frequencies ranging from 42 to 65 kHz, delivering broad beamwidth coverage from 25° to 16° port-starboard and max depths up to 914 meters (3,000 feet). The medium frequency band ranges from 85 to 135 kHz, with a narrower 16° to 11° beamwidth and depth capability up to 457 meters (1,500 feet). Offering a total bandwidth of 73 kHz, they cover all popular fishing frequencies such as 50, 88, and 107 kHz within a single unit.

Designed for all propulsion types, these transducers feature a stainless steel mounting bracket for transom installations and a durable SEALCAST™ seamless urethane housing for long life in the water. Equipped with patented Xducer ID® technology, they facilitate easy system identification and plug-and-play integration. With a 10-meter (33 feet) cable and Navico Y-cable Mix-N-Match connectors, these transducers meld advanced sonar performance with flexible connection options for Navico-compatible systems.

Model:

Model Number	Cable Connector Type
TM265C-LM-BL2	Navico 7-Pin Y-Cable Mix-N-Match
TM265C-LM-9N2	Navico 9-Pin Y-Cable Mix-N-Match

Key Features

Depth and fast-response water temperature sensing
1 kW sonar power output for excellent deep to mid-depth performance
Low frequency: 42-65 kHz; 25° to 16° beamwidth; max depth 914 m (3,000 ft)
Medium frequency: 85-135 kHz; 16° to 11° beamwidth; max depth 457 m (1,500 ft)
Total bandwidth: 73 kHz covering key fishing frequencies (50, 88, 107 kHz)
Stainless steel transom mount bracket; compatible with all boat propulsion types
SEALCAST™ seamless urethane housing for durability and reliability
Patented Xducer ID® technology for easy integration
10 m (33 ft) cable length with Navico Mix-N-Match Y-cable connectors
Transom angle adjustment of 3° to 21° for optimal installation

Comparison Table

Feature	TM265C-LM-BL2 (7-Pin Cable)	TM265C-LM-9N2 (9-Pin Cable)
Cable Connector Type	Navico 7-Pin Y-Cable Mix-N-Match	Navico 9-Pin Y-Cable Mix-N-Match
Power Output	1 kW	1 kW
Low Frequency Range	42-65 kHz	42-65 kHz
Low Frequency Beamwidth	25° to 16°	25° to 16°
Low Frequency Max Depth	914 m (3,000 ft)	914 m (3,000 ft)
Medium Frequency Range	85-135 kHz	85-135 kHz
Medium Frequency Beamwidth	16° to 11°	16° to 11°
Medium Frequency Max Depth	457 m (1,500 ft)	457 m (1,500 ft)
Mounting Style	Transom	Transom
Cable Length	10 m (33 ft)	10 m (33 ft)
